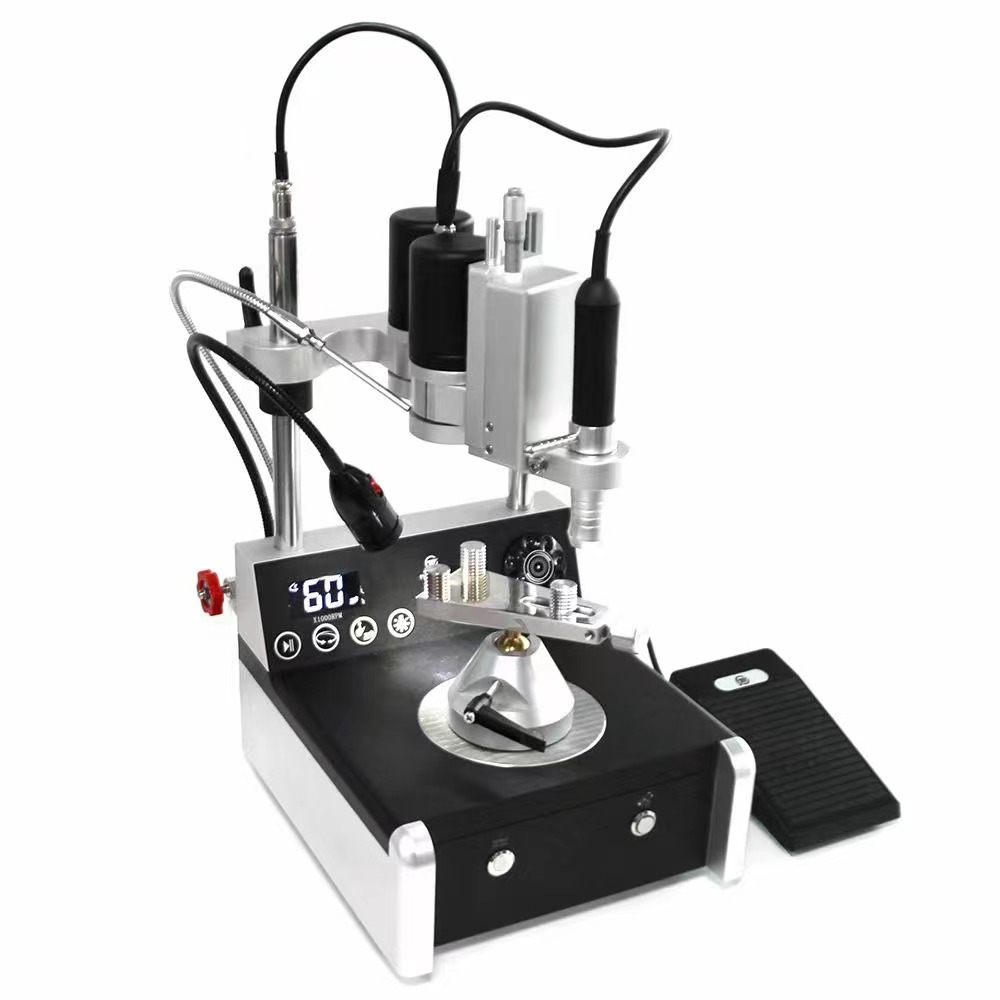

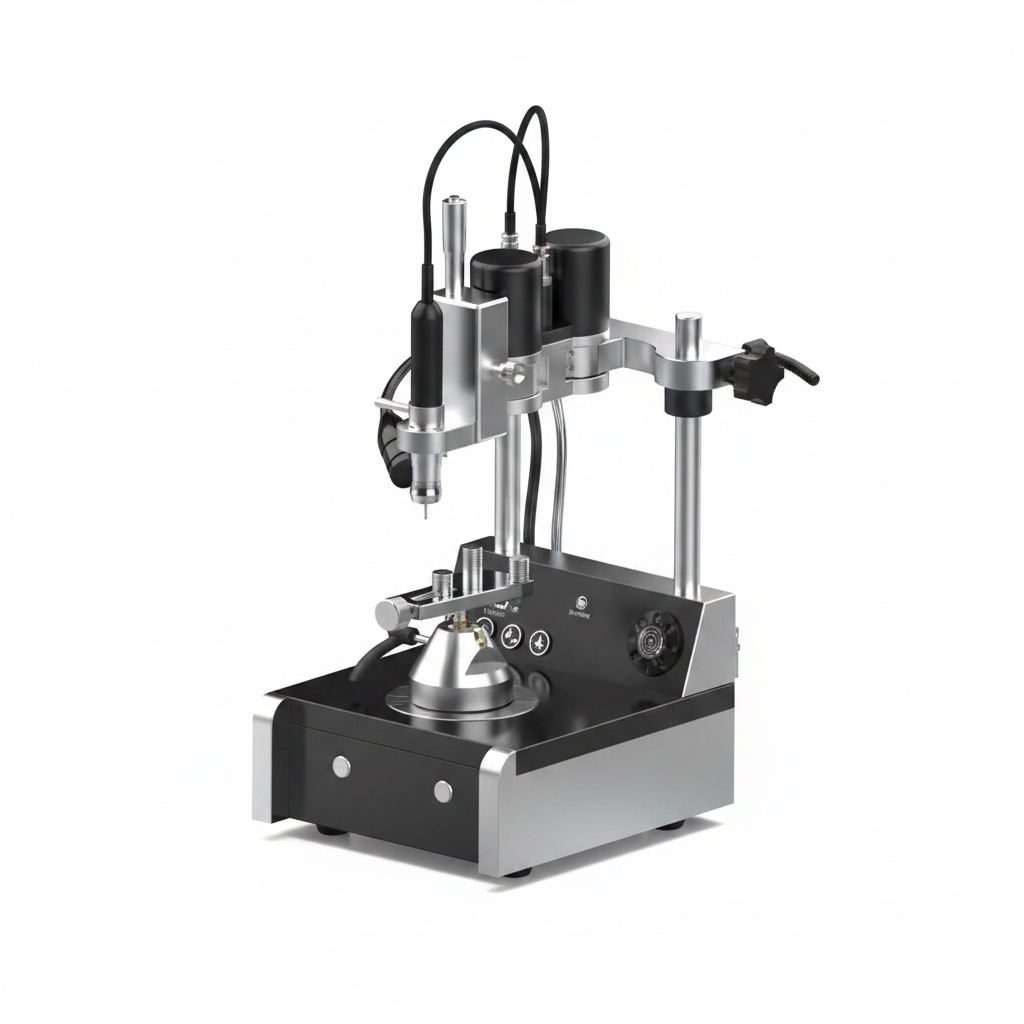

Parallel Manual Milling Unit Brushless
The HP632 is a high-precision dental surveyor and milling unit engineered for advanced laboratory workflows.
This dental laboratory manual milling machine excels at the guided adjustment of implant parts like custom titanium or zirconia abutments.
Technicians can execute highly accurate manual abutment adjustment with its stable magnetic base and vise lock.
It functions as a robust manual milling unit to achieve ideal friction fits and parallel pathways of insertion.
This surveyor-style lab motor is the ultimate tool for contouring dentures, crowns, and complex metal frameworks.
Features
- High-Speed Performance: High-torque brushless DC motor delivering up to 60,000 RPM for ultra-smooth surface finishing on hard metals.
- Ergonomic Ergonomics: One-touch electric swing arm lock combined with adjustable pneumatic cooling to reduce workpiece heat buildup.
- Enhanced Visibility: Integrated shadowless LED and auxiliary lighting ensure maximum operational visibility during intricate adjustments.
- Flexible Control Modes: Clear digital interface supporting manual knob control, foot pedal operation, and hands-free cruise control.
Technical Parameters
| Parameter | Specification Details |
| Spindle Motor Type | Brushless DC |
| Maximum Spindle Speed | 60,000 RPM |
| Spindle Power & Torque | 300 W / 8.3 N-cm |
| Spindle Concentricity | ≤ 0.02 mm |
| Adjustment Stroke | 90 mm (Swing Arm) / 25 mm (Fine Adjustment) |
| Control Modes | Manual / Foot Pedal / Cruise |
| Lighting | Shadowless LED + Auxiliary Light |
| Dimensions & Weight | 335x246x450mm, Net weight:20 kg |
| Power Supply | AC110 / AC220 / AC240 |
