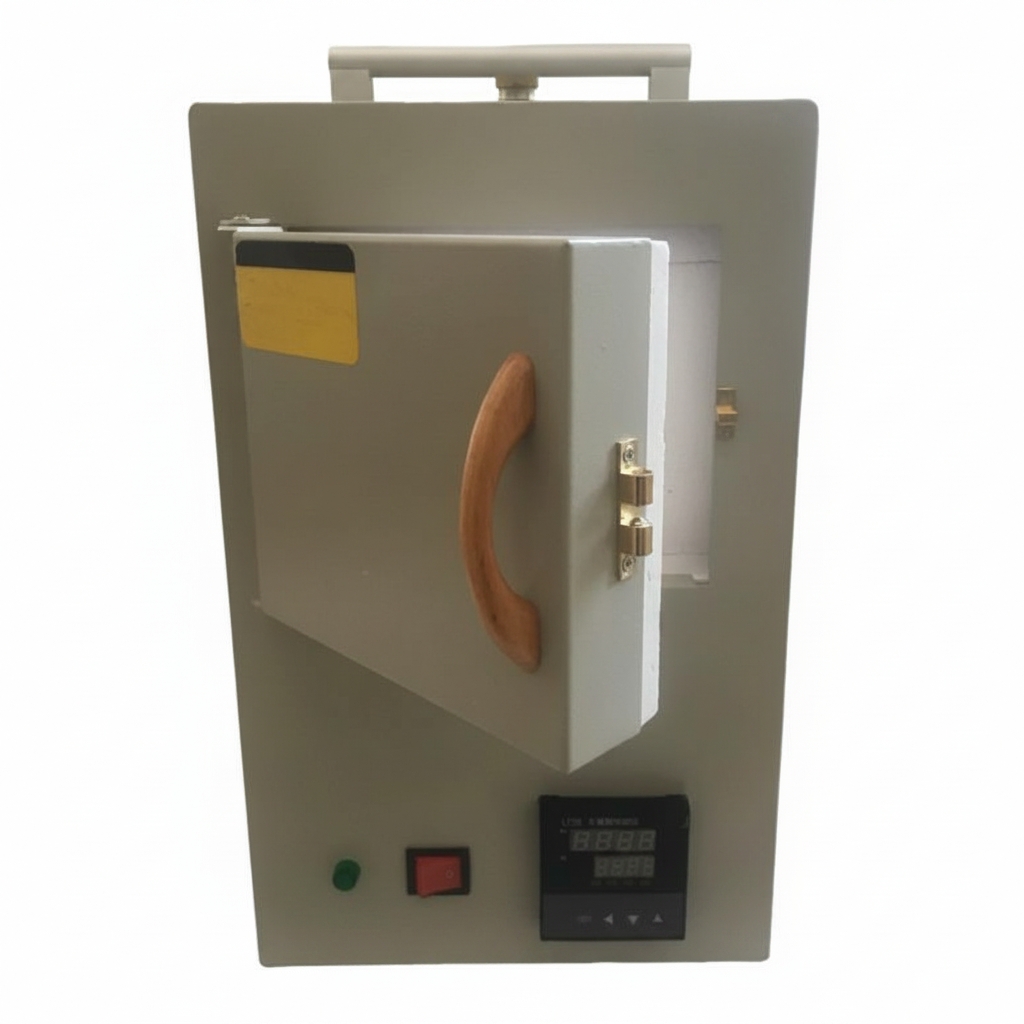

Dental Lab Burnout & Heat Treatment Furnace
This compact furnace is purpose-built for wax burnout, lost-wax casting preparation, and 3D-printed metal heat treatment.
It heats at up to 100 °C per minute, reaching full burnout temperature fast and cutting total cycle time significantly.

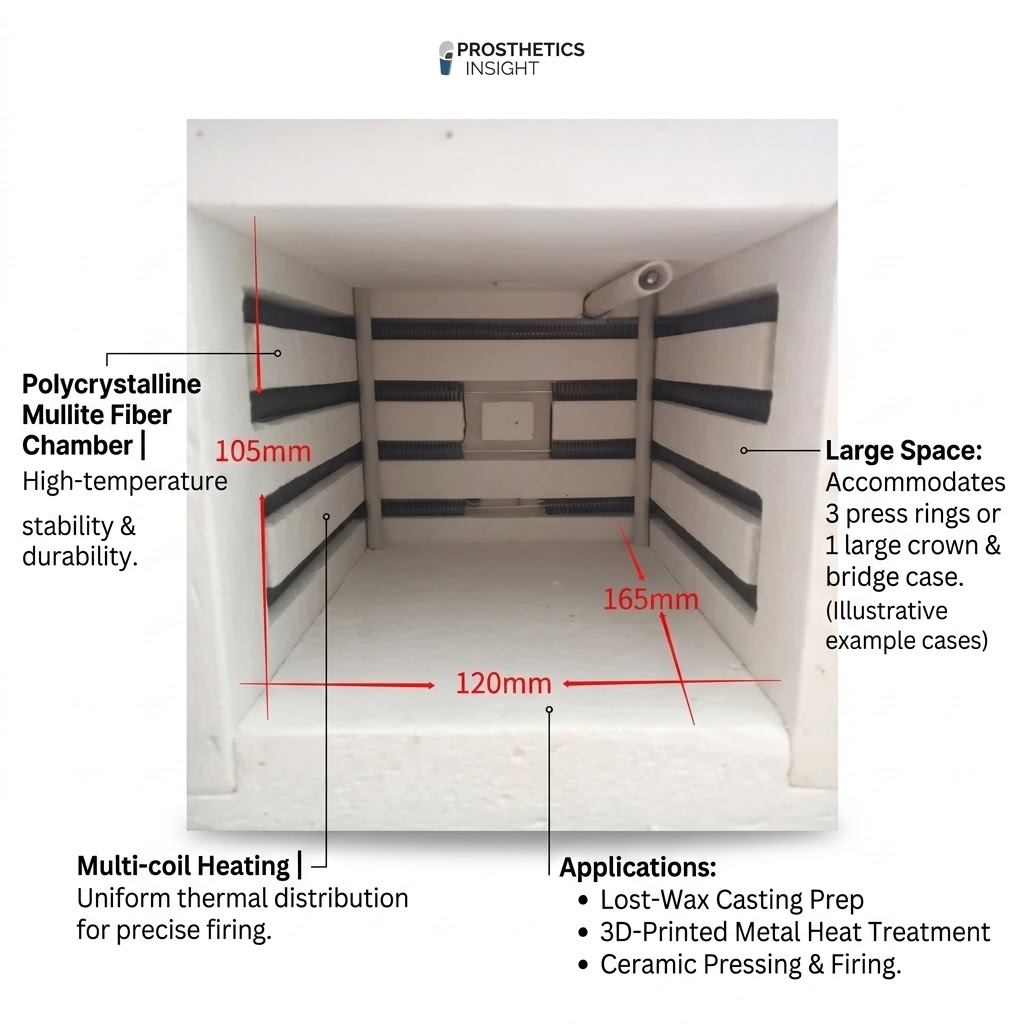

The inner chamber is lined with polycrystalline mullite fiber, delivering outstanding heat resistance and thermal shock durability.
A digital display and four dedicated buttons make programming straightforward — any technician can operate it from day one.
Pre-set and store custom programs for lithium disilicate ingots, wax-lost burnout, and 3D-printed metal heat treatment—streamlining your benchwork with a single touch.
Just place your investment ring inside, press Trigger Down, and the complete wax burnout cycle runs automatically to finish.
Key Features
- 100 °C/min Rapid Heating Rate — Reaches 1000 °C in under 10 minutes, letting you run more casting cycles per day.
- Polycrystalline Mullite Fiber Chamber — Excellent heat resistance and superior thermal shock resistance for long service life.

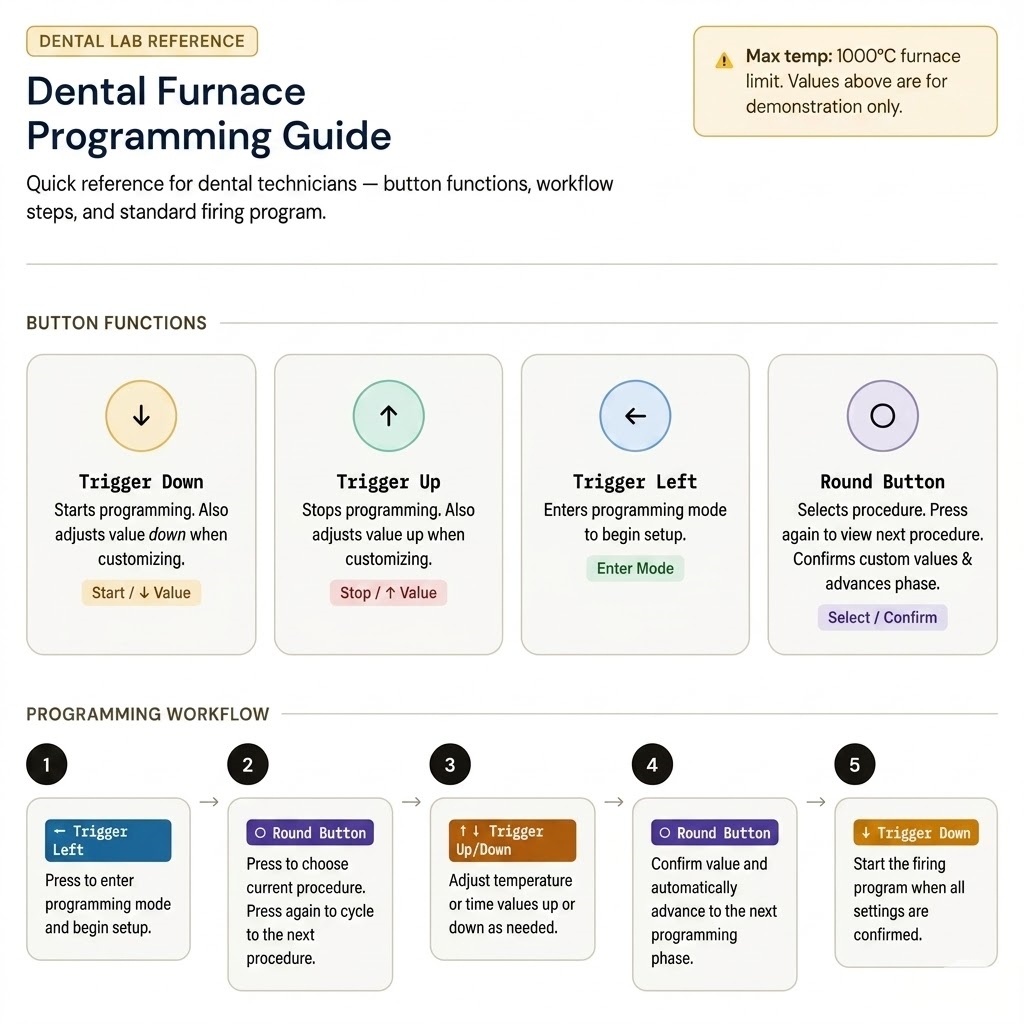

- 4-Button Digital Control Panel — Trigger Down, Trigger Up, Trigger Left, and Round Button with digital display showing live temperature and program step.
Built-in a Wax Burnout Program — Press Trigger Down to start instantly.
Technical Parameters
| Parameter | Value | Note |
|---|---|---|
| Temperature Range | 50 – 1000 °C | Full dental processing range |
| Rise Heating Rate | 100 °C / min | Reaches 1000 °C in ≈ 10 min |
| Chamber Size (W × H × D) | 165 × 120 × 105 mm | Fits standard investment rings |
| Overall Size (W × H × D) | 350 × 260 × 430 mm | Compact bench-top footprint |
| Rated Power | 1.5 kW | — |
| Power Supply | 220V 50Hz / 110V 60Hz | — |
| Net Weight | 12 kg | Portable with top carry handle |
| Cool-Down Program Value | −121 °C | Triggers automatic cool-down to room temp |
| Chamber Lining Material | Polycrystalline Mullite Fiber | Excellent heat & thermal shock resistance |
Recommand Customization Program for 3D Printing Metal Prostheses Heat Treatment Setting：
| Phase | SP / Step | Temperature | Duration |
| P1 | SP · 1 | 20 °C | — |
| P2 | SP · 2 | 900 °C | 80 min |
| P3 | SP · 3 | 1000 °C | 60 min |
| P4 | SP · 4 | 1000 °C (Hold) | 60 min |
| P5 | SP · 5 | −121 °C | — |
Setting Phase 5 to −121 °C is the unique program signal that activates the automatic cool-down cycle. Always include this value as the final step in any custom firing profile.
