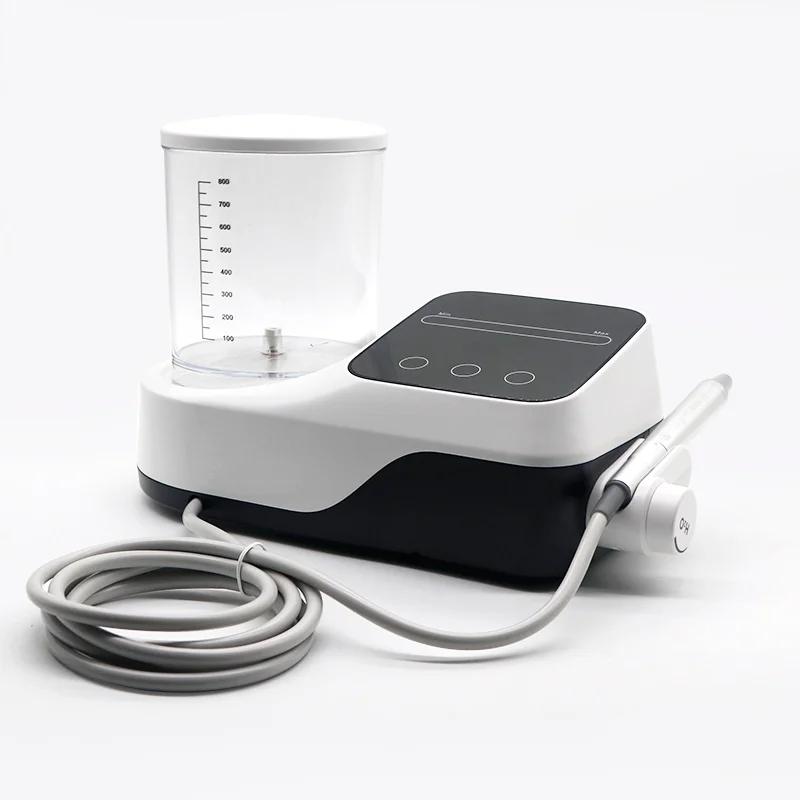

Piezoelectric Ultrasonic Unit
The VRN-Q5 is an advanced Piezo Unit designed to elevate dental hygiene and specialty treatments.
This all-in-one Periodontal Therapy System features a self-contained, smart-touch console for seamless operation.
Its specialized linear tip vibrations ensure a highly efficient, gentle, and No-Pain Ultrasonic Treatment Device experience for your patients.
Clinically, this system is ideal for efficient supragingival scaling, deep subgingival periodontal debridement, and precise endodontic root canal irrigation.
Key Features

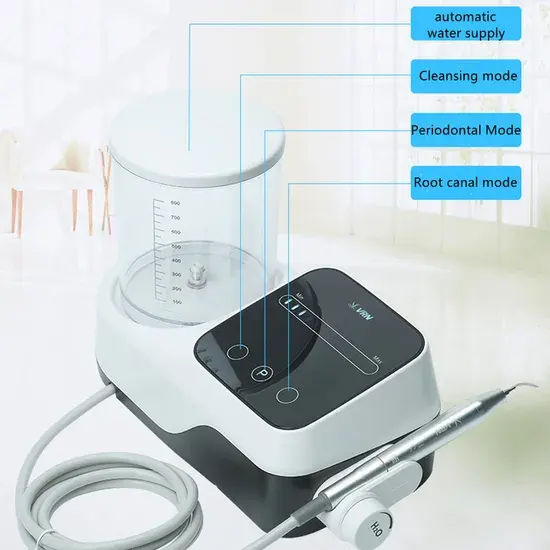

Automatic Water Supply: Independent, built-in water reservoir allows for standalone operation and the use of therapeutic clinical solutions without external plumbing.
Dual-Handpiece Efficiency: Equipped with two illuminated LED handpieces to eliminate clinic downtime by allowing one to be sterilized while the other is in use.
Patient Comfort & Painless Tech: Advanced smart feedback control delivers smooth, linear vibrations for a highly comfortable, virtually painless patient experience.
16-Piece Premium Tip Bundle: Comes complete with a comprehensive set of 16 specialized tips spanning hygiene, periodontal, and endodontic applications.
Technical Specifications & Accessories
| Category | Parameter / Item | Specification |
| Power & Electrical | Input Voltage / Frequency | 220V/110V, 50Hz/60Hz |
| Input Power | 35 VA | |
| Fuse Rating | T1AL 250V | |
| Performance Dynamics | Tip Vibration Frequency | 18 kHz ~ 45 kHz |
| Tip Output Power | 3 W ~ 20 W | |
| Main Vibration Deviation | Min 1 μm (–50%), Max 100 μm (+50%) | |
| Half Offset Force | Min 1 N (–50%), Max 2 N (+50%) | |
| Wireless Foot Switch | Battery Requirements | 5# Battery (AA) × 2 |
| Receiving Sensitivity / Freq. | -114 dB / 2.4G–2.5G | |
| Transmission Freq. / Modulation | 2.412 GHz–2.462 GHz / GFSK | |
| Effective Radiation Power | 12 dbm | |
| Logistics & Operation | Operation Mode | Continuous operation |
| Host Machine / Shipping Weight | 1.8 kg / 11 kg | |

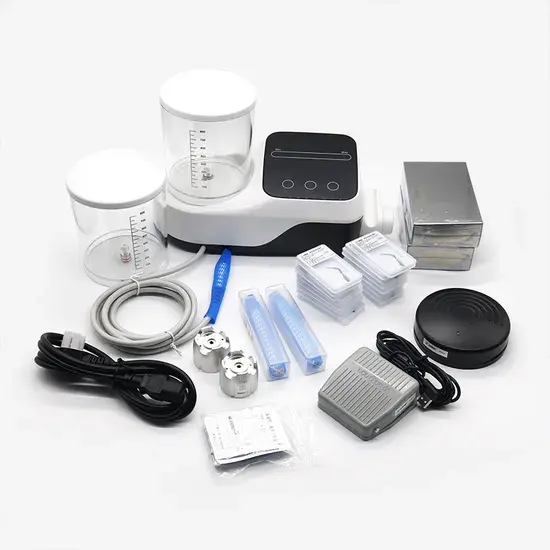

| Included Accessories | Main Control Unit | 1 Unit (with integrated water tank) |
| LED Light Handpieces | 2 Pieces | |
| Complete Tip Bundle | 16 Pieces (G1×2, G2×2, G4×2, E1, P16×2, P12×2, P12L, P12R, P11, IM1) | |
| Sterilization / Autoclave Boxes | 2 Pieces | |
| Foot Switch Controls | 2 Pieces (1 Wired, 1 Wireless) | |
| Accessory Kit | 1 Pack |
