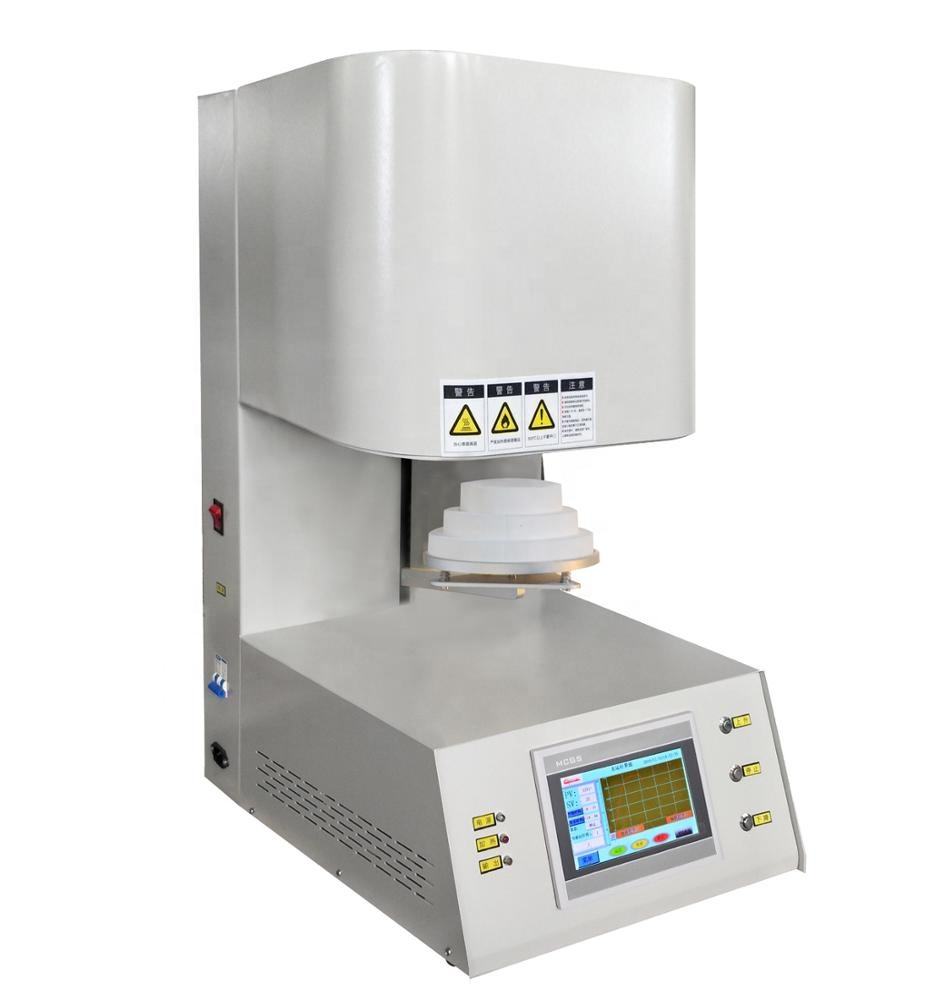

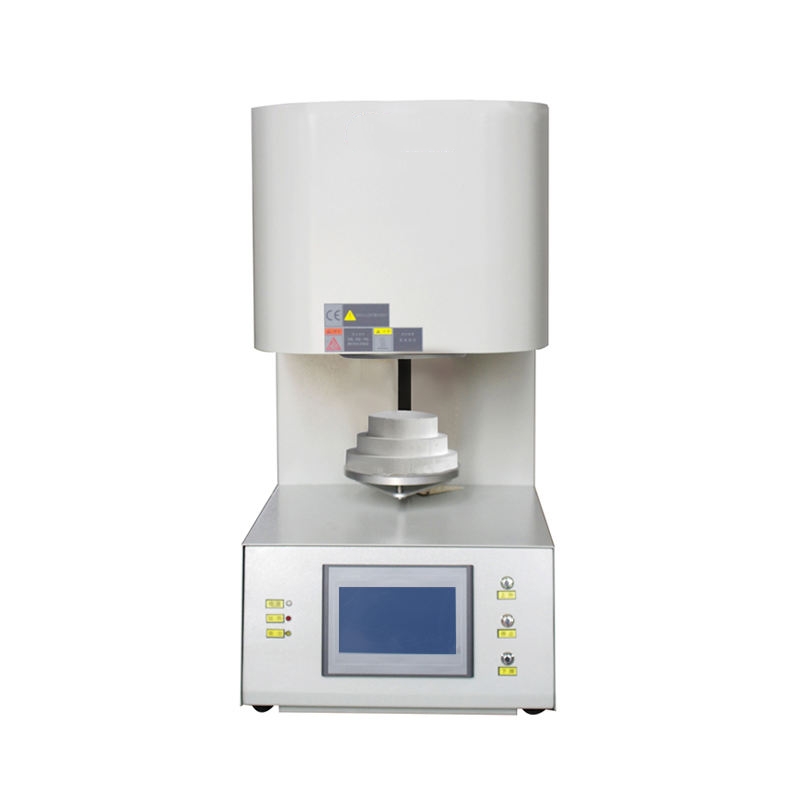

Professional-grade ceramic sintering for dental laboratory use
Engineered for the predictable densification of zirconia-based prostheses, this high-temperature unit supports full-contour crowns, bridges, and structural ceramics. It delivers the consistent structural integrity required for lasting restorative outcomes.
Reaching working temperatures up to 1600 °C with rapid ramp rates up to 40 °C/min, the furnace ensures complete crystalline transformation. This guarantees optimal translucency and reliable flexural strength without compromising marginal fit or durability.

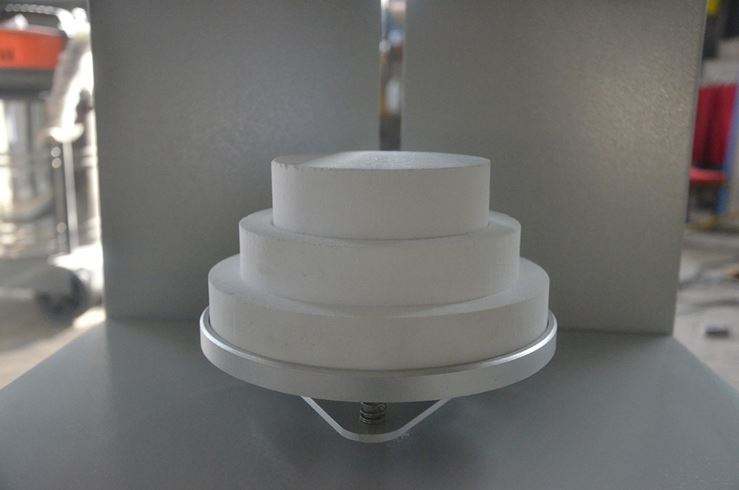

An integrated electric lift platform precisely positions the ceramic crucible within the insulated muffle. This promotes absolute temperature uniformity across all restoration surfaces, preventing distortion and ensuring the homogenous density of your frameworks.
Designed for daily laboratory use, it features a 7-inch HD touch interface and 30 programmable profiles. Technicians can easily store and execute repeatable sintering protocols, streamlining production and ensuring standardized results with every cycle.
Features
Precise, repeatable results: ±1 °C temperature accuracy and ±5 °C uniformity ensure consistent shrinkage, fit, and strength in zirconia restorations.
Fast sintering cycles: Programmable heating ramp up to 40 °C/min reduces turnaround time for high‑volume labs without compromising densification.

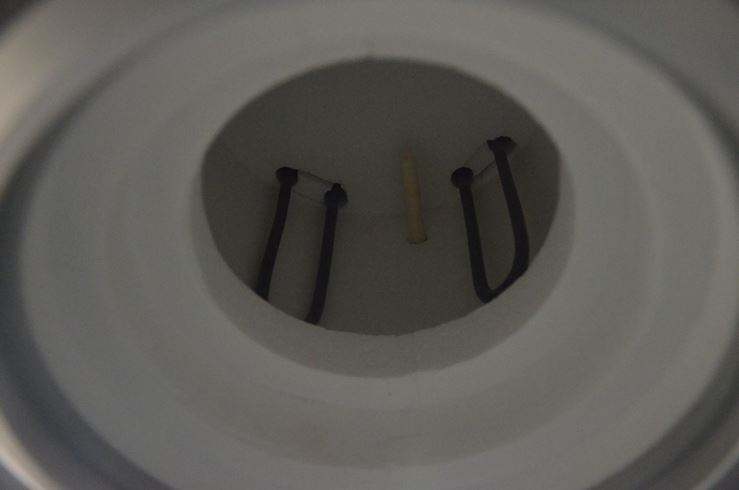

Uniform heat distribution: Ring‑type MoSi₂ ring‑configured heating elements deliver stable, even temperature across the entire chamber.
Flexible programming: 30 stored sintering profiles adapt to different zirconia brands and case types (crowns, bridges, frameworks).
Safe, automated loading: Electric lift platform with interlock cutoff simplifies crucible placement and improves operator safety.
Robust construction: Multi‑layer ceramic fiber insulation (up to 1800 °C) and dual‑fan‑cooled steel casing keep the outer surface ≤60 °C.
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Chamber dimensions | Ø 100 × H 110 mm |
| Maximum temperature | 1700 °C (attained within 2 hours) |
| Working temperature | 800 – 1600 °C |
| Temperature accuracy | ± 1 °C |
| Temperature uniformity | ± 5 °C |
| Heating rate | 0 – 40 °C/min (programmable) |
| Heating elements | U-type MoSi₂ × 4, ring-configured |
| Thermocouple | Type B (Pt-Rh / Pt-Rh), 99.7% Al₂O₃ sheath |
| Temperature control | PID auto-tune via SCR phase-angle control; overtemperature alarm; thermocouple fault protection |
| Program storage | 30 independent sintering profiles |
| Insulation (inner → outer) | 1800 °C ceramic fiber board → 1600 °C ceramic fiber board → 1260 °C ceramic fiber board |
| Furnace casing | Double-layer steel with dual cooling fans; outer surface ≤ 60 °C |
| Door mechanism | Electric lift platform; power interlock on open |
| Rated power | 2 kW |
| Power supply | 220 V, 50/60 Hz, single phase |
| External dimensions | ~550 × 420 × 810 mm |
| Net / gross weight | ~90 kg / ~110 kg |
| Certification | CE |
| Warranty | 1-year limited warranty with lifetime technical support (consumable parts excluded) |
