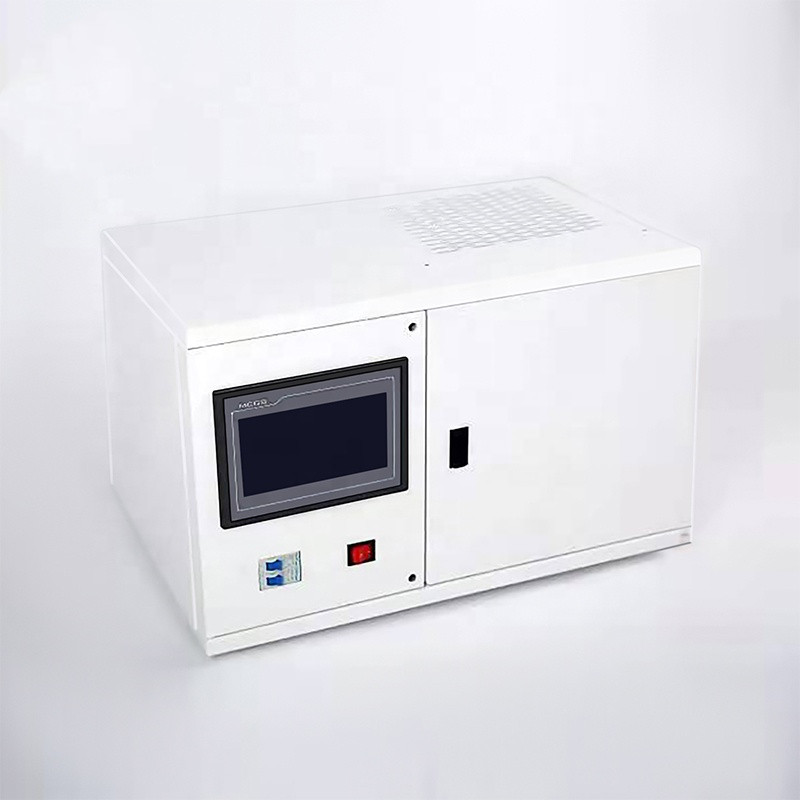

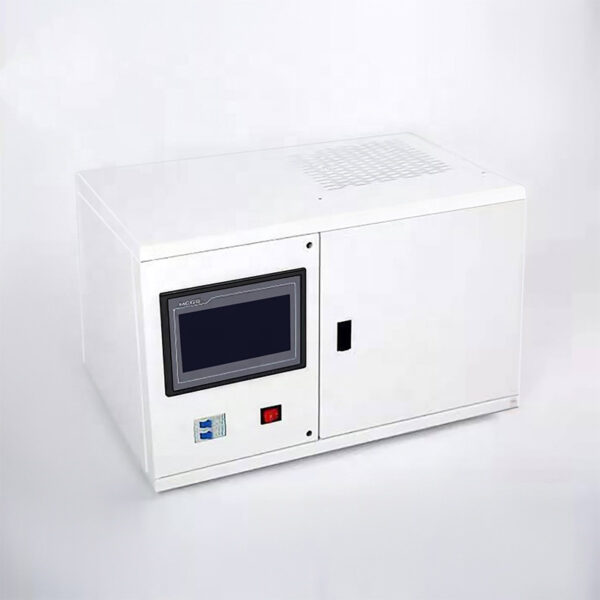

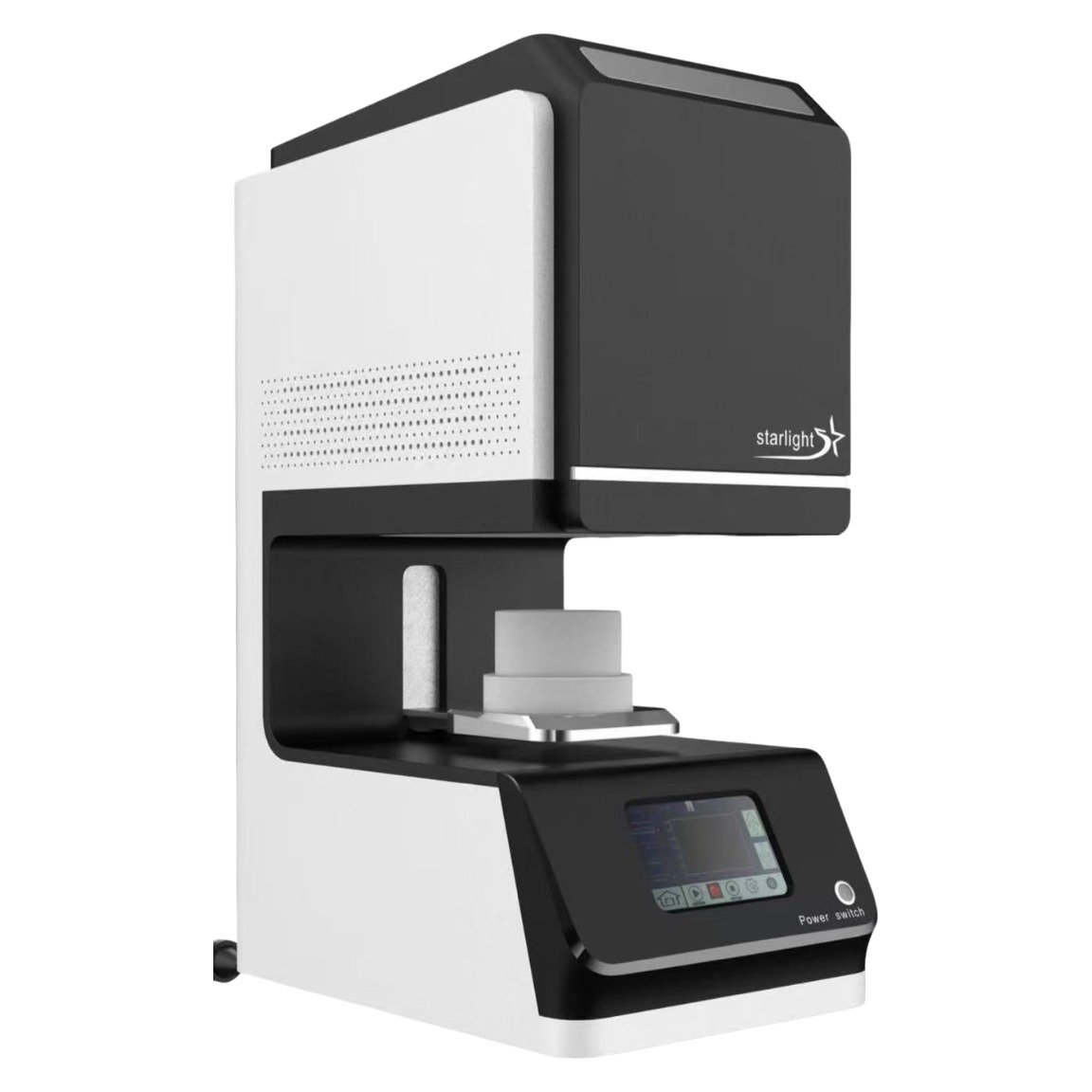

High-Performance Dental Sintering Oven
Dental furnaces, or dental ovens, are used during the production of ceramic dental restorations, such as crowns, bridges, inlays, and onlays. Oven can reach hight temperatures and pressures to process the ceramic material into a final hardened state.
Our dental furnaces are among the most advanced on the market and can reach temperatures of up to 1,600 °C. The temperature balance must remain constant throughout the cycle. Otherwise, you will experience inconsistencies such as cracks, weak links, and brittle material in your work.

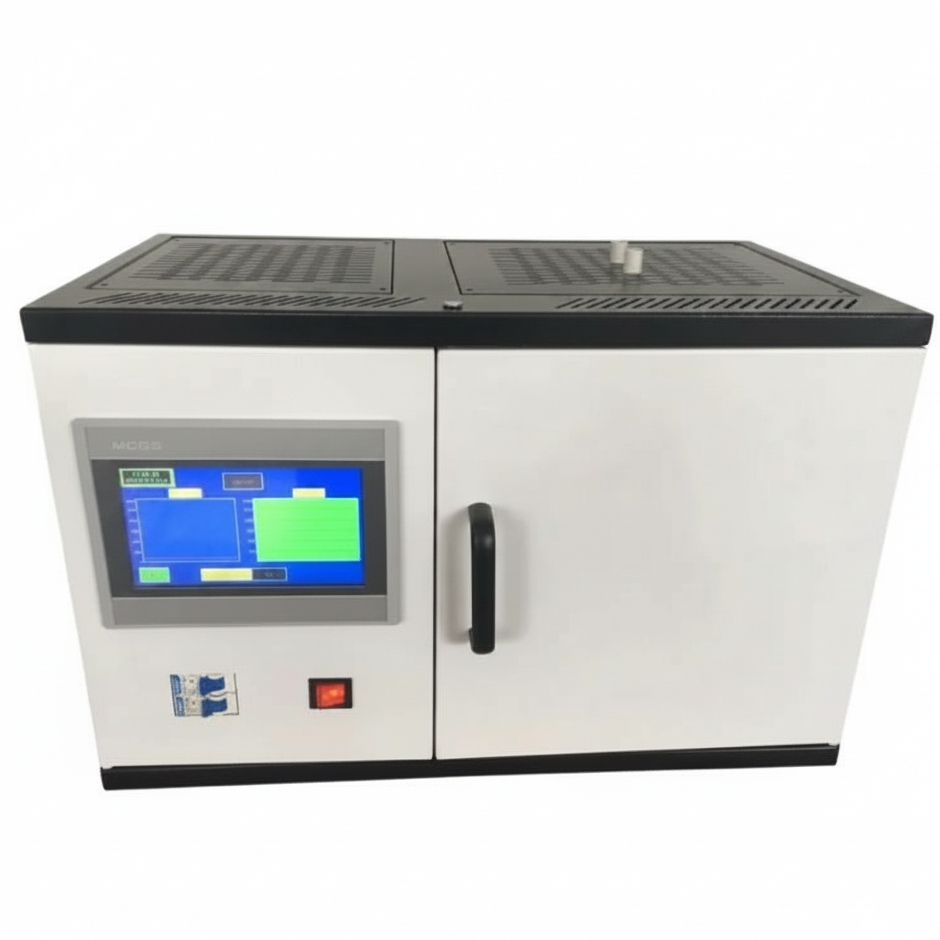

This high-performance dental oven features a 50°C/min ramp rate for rapid 1.5-hour sintering.
Laboratories can fully customize programs to meet the exact specifications of any zirconia material.
The intuitive touch interface ensures consistent, high-quality results for every restoration.
We guarantee dental lab ovens will be the best quality-price-performance-productivity ratio.
Dental laboratory Ovens advantages:
Ultra-Fast Processing: Achieve complete sintering cycles in under 2 hours with a max ramp rate of 50°C/min.
Universal Compatibility: Fully programmable settings to match any zirconia or lithium disilicate brand requirements.
Superior Accuracy: Industrial-grade temperature stability of ±1°C for consistent translucency and fit.

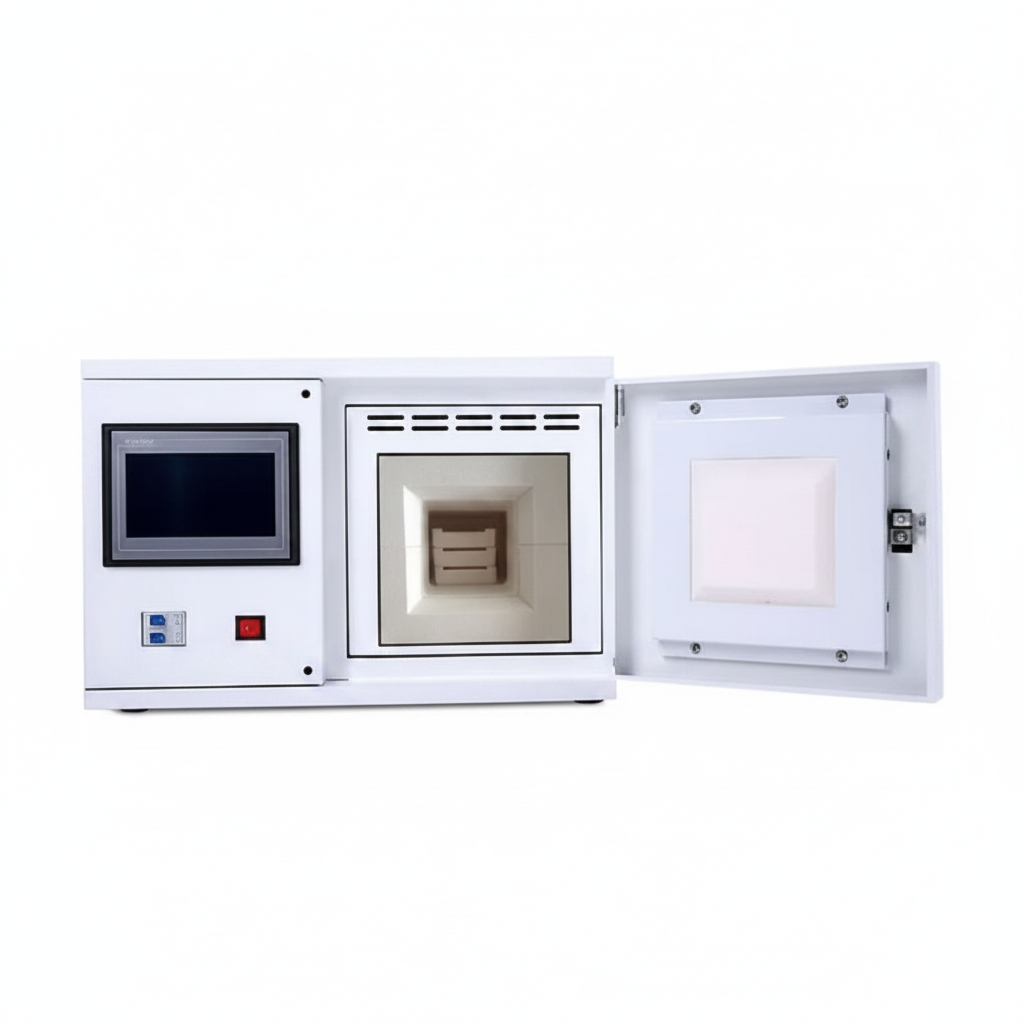

- Motorized lifting platform, and large chamber allows to hold up 3 sintered crucibles tray together.
Technical Specification
1. Thermal Performance & Core Kinetics
Maximum Operating Temperature: 1600°C
Temperature Accuracy & Stability: ± 1°C
Maximum Heating Ramp Rate: 50°C (Optimized for ultra-speed protocols)
Heating Element Technology: Premium Silicon Carbide elements
2. Operational Capacity & Software Interface
Sintering Chamber Capacity: Multi-tier capability (Supports up to 3 crucibles simultaneously)
Sintering Cycle Versatility: Dual-mode functionality supporting both Rapid (Extreme Speed) and Conventional (Traditional) sintering profiles

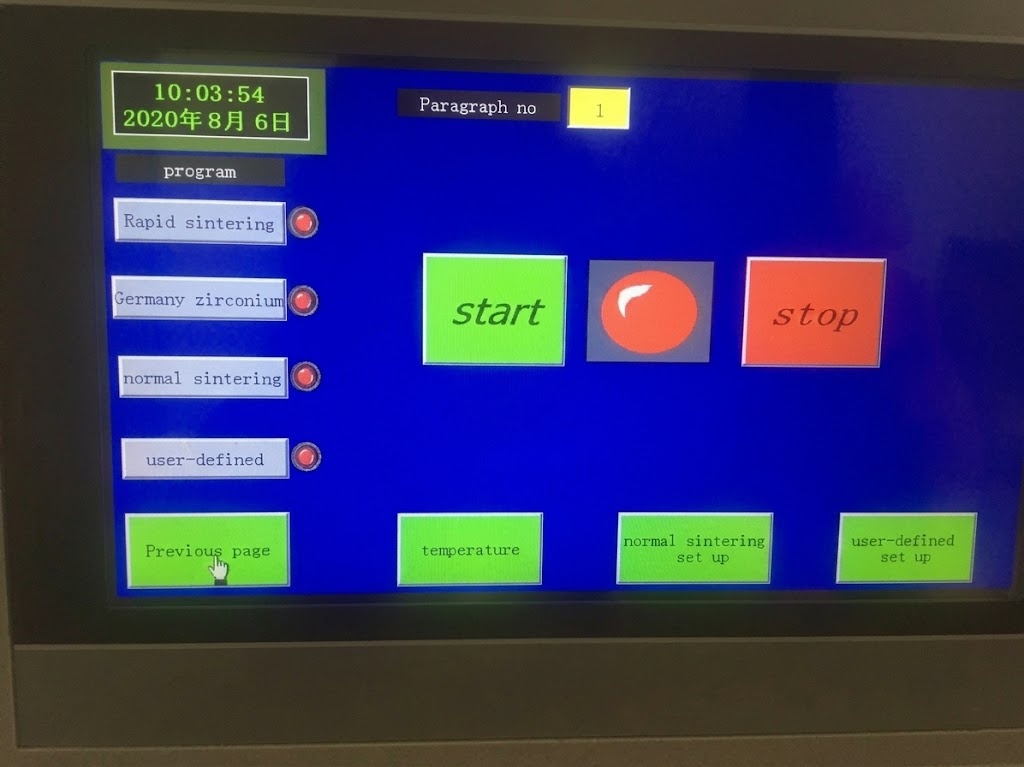

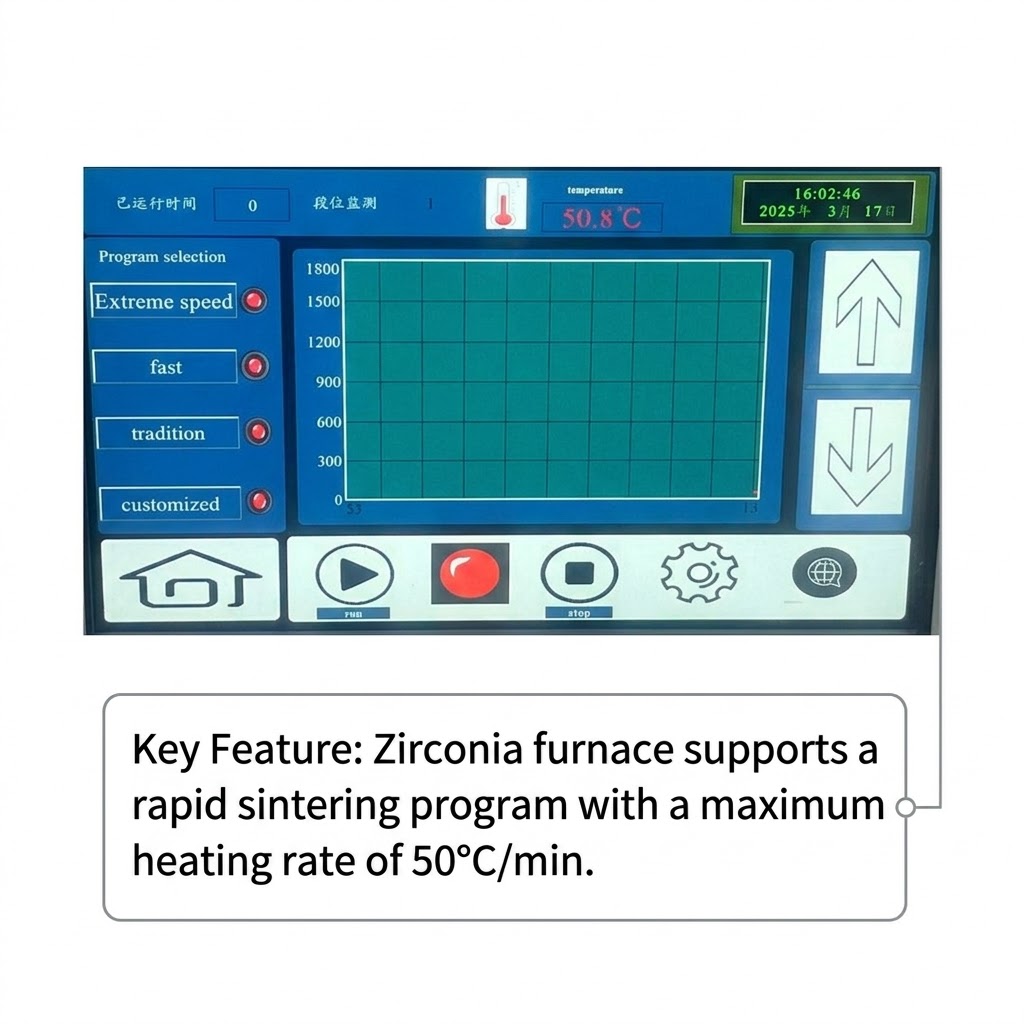

User Interface: Intuitive, high-resolution touchscreen display with integrated graphical curve tracking
3. Electrical & Mechanical Profiles
Rated Power Consumption: 3500W
Physical Unit Dimensions 510x370x820mm
Net Unit Weight: 38 kg
4. Logistics & Shipping Data
Gross Shipping Weight: 44 kg
Packaging Dimensions : 540x400x850mm
Key Performance Advantages
High Thermal Efficiency: Engineered for rapid-cycling zirconia without compromising structural translucent properties or marginal integrity.
Anti-Contamination Environment: Pure SiC elements prevent elements from outgassing, eliminating the risk of green/yellow discoloration on high-translucency zirconia frameworks.
