Semi-Adjustable Dental Articulator – Precise Mandibular Anatomy Simulation & Dual-Knob Bennett Angle Control (Artex System)
This precision dental articulator delivers smooth, natural mandibular motion simulation for accurate restoration design. It features a fixed +35° sagittal condylar guidance with a 12.5 mm curvature radius for anatomical trajectory tracking. Dual spring-loaded side knobs allow quick Bennett angle adjustments from 0° to 20° on the mandibular frame.
The magnetic mounting base system ensures seamless compatibility with standard Artex-style plates. Built with durable materials, it provides precise centric locking and reliable lateral excursion testing.
Parameters
| Technical Parameter | Specification | Anatomical Function Simulated |
|---|---|---|

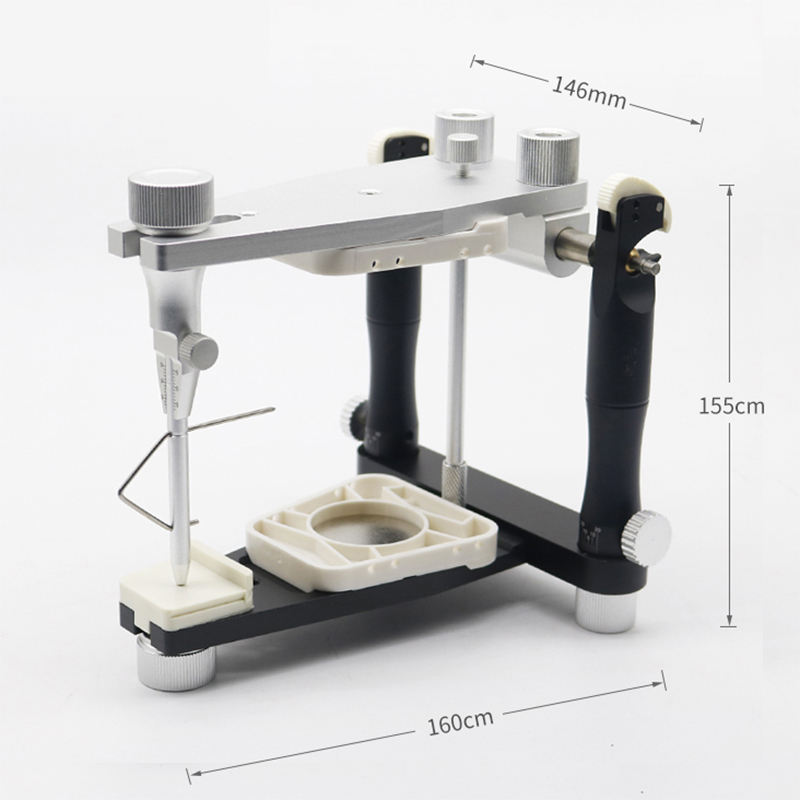

| Overall Dimensions | 160 mm × 146 mm × 155 mm | Compact workbench footprint |
| Sagittal Condylar Guidance | Fixed at +35° | Simulates forward and downward mandibular sliding path |
| Curvature Radius | 12.5 mm | Mirrors natural TMJ articular eminence curvature |
| Bennett Angle Range | 0° – 20° (Adjustable) | Controls lateral (side-to-side) mandibular excursion |

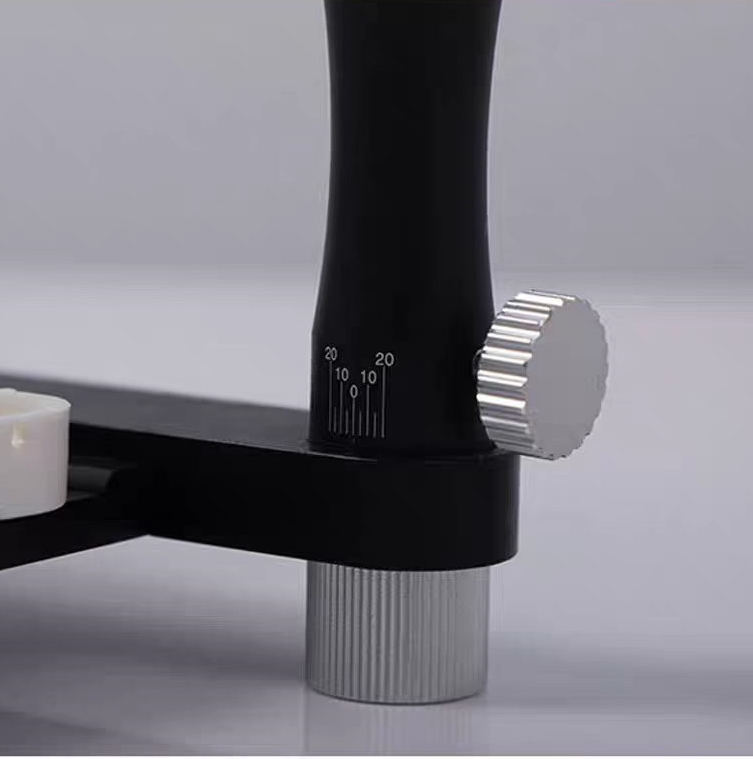

| Angle Adjustment Mechanism | Dual push-pull knobs on lower frame | Quick, independent lateral shift tuning for the mandible |
| Mounting Plate System | Magnetic Split-cast Base | Artex-compatible system for accurate maxillary/mandibular model transfer |
Options:

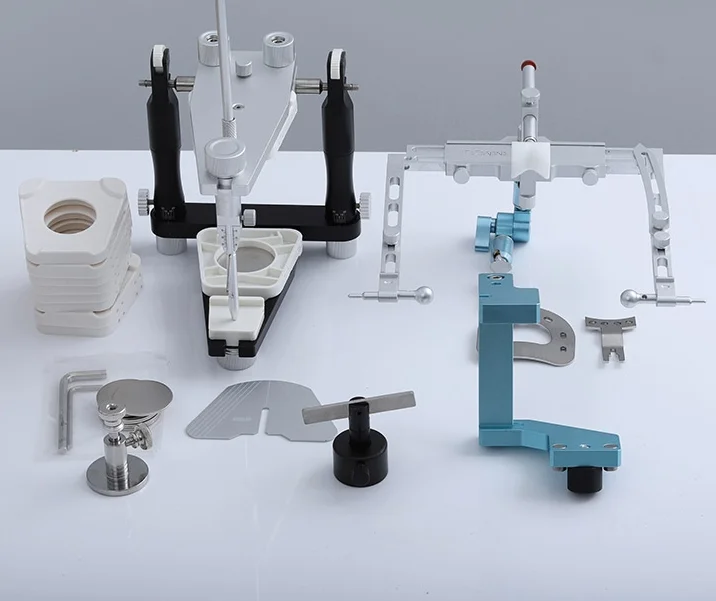

Facebow, transfer standard, folk tray, articulator complete set for dental practice.
