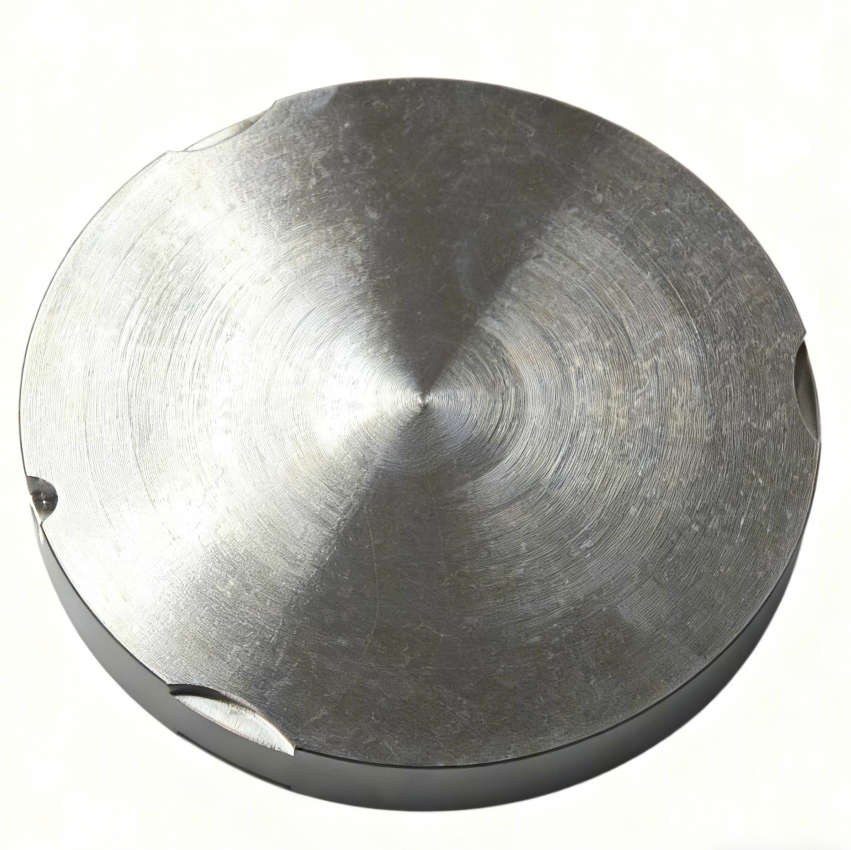

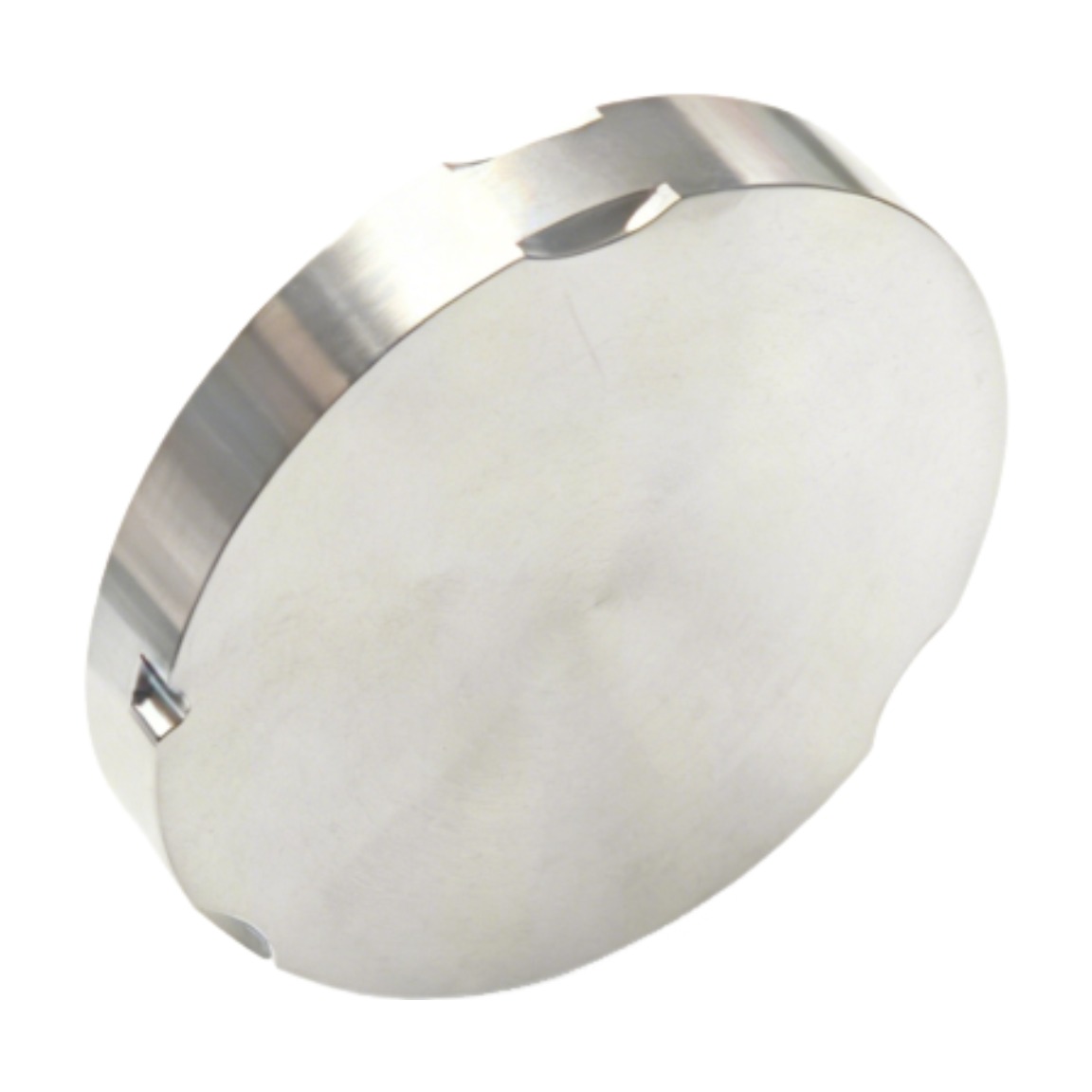

This 95mm zirkonzahn titanium puck is machined from aerospace-grade Ti-6Al-4V, delivering exceptional strength and biocompatibility for dental restorations.
Designed for full compatibility with the Zirkonzahn CAD/CAM milling system, it ensures precise, stable milling with minimal vibration.
The disc’s uniform density and fine grain structure produce clean margins and consistent fit on removable and fixed frameworks.
Available in multiple thicknesses, this zirkonzahn titanium puck is a reliable choice for dental technicians producing implant bars, bridges, and partial frameworks.
Meet medical implant standard: ISO 5832-3.
Parameters
| Item | Specification |
|---|---|
| Diameter | 95mm |
| Height | 10mm–25mm |
| Material | Ti-6Al-4V (Grade 5 Titanium), ASTM F136 Standard |
| Compatibility | Zirkonzahn CAD/CAM milling system |
| Composition | % |
|---|---|
| Ti | 90% |
| Al | 6.0% |
| V | 4.1% |
| Fe | 0.13% |
| O | 0.1% |
| N | 0.01% |
| C | 0.03% |
| H | 0.001% |
| Mechanical Properties | Value |
|---|---|
| Density | 4.43 g/cm³ |
| Vickers Hardness | 353 MPa |
| E-Modulus | 114 kN/mm² |
| Yield Strength | 836 MPa |
| Tensile Strength | 897 MPa |
