Universal Dental Implant Bone Profiler System

Implant Bone Profiler System

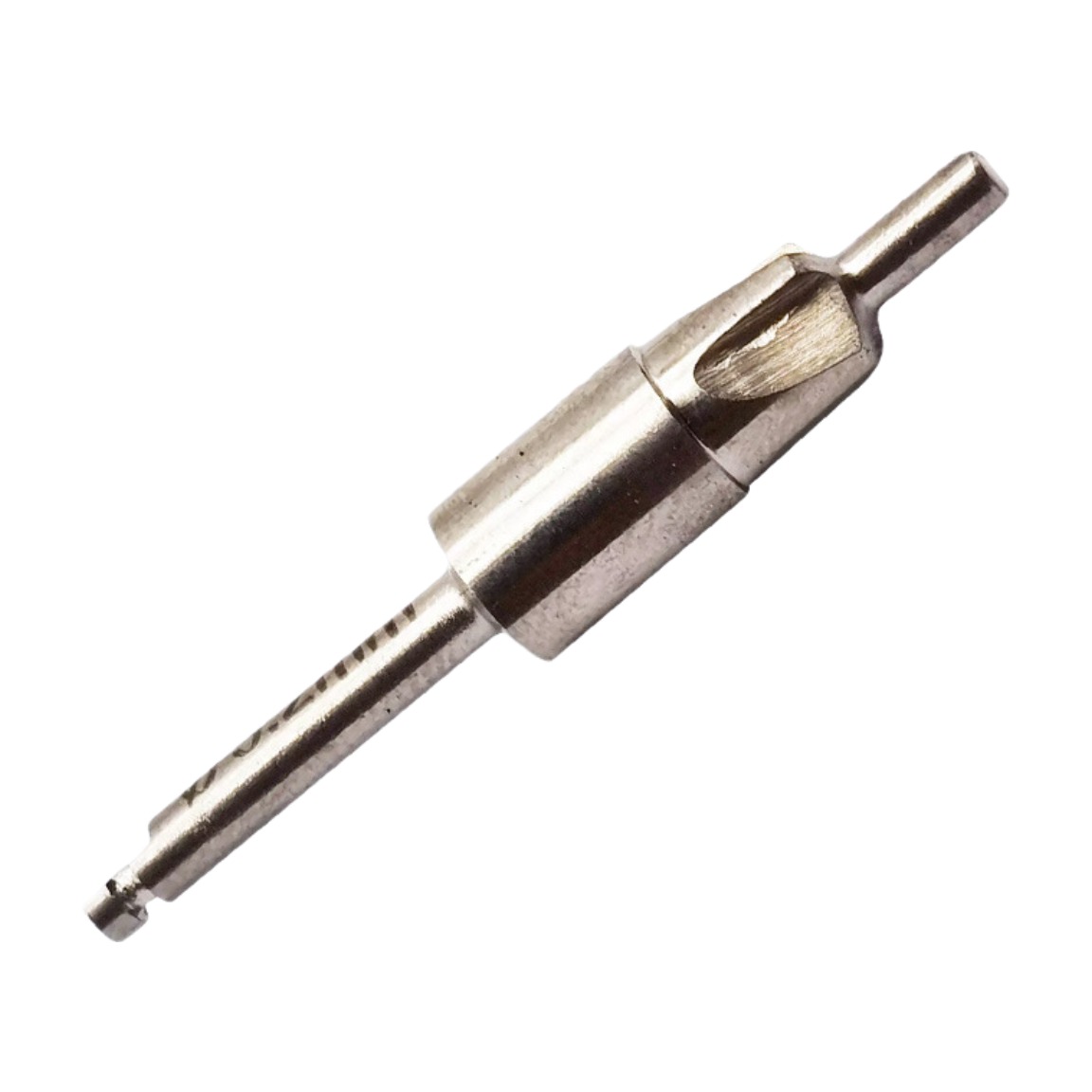

The implant bone profiler system is a specialized, guided rotary instrument designed for the precise removal of coronal bone overgrowth during second-stage implant uncovering or abutment seating.

The device features a unique guided pilot pin that inserts directly into the internal connection geometry of the implant fixture.

This coaxial guidance system prevents the active cutting flutes from making contact with the critical internal threads or the polished implant shoulder.

It effectively creates a precise, concentric path in hard tissue for healing abutments, impression copings, and final restorative components.

Use of this profiler eliminates the need for unpredictable, high-risk manual bone scraping with hand chisels.

Features

Centers the instrument to ensure absolute zero-contact thread preservation.

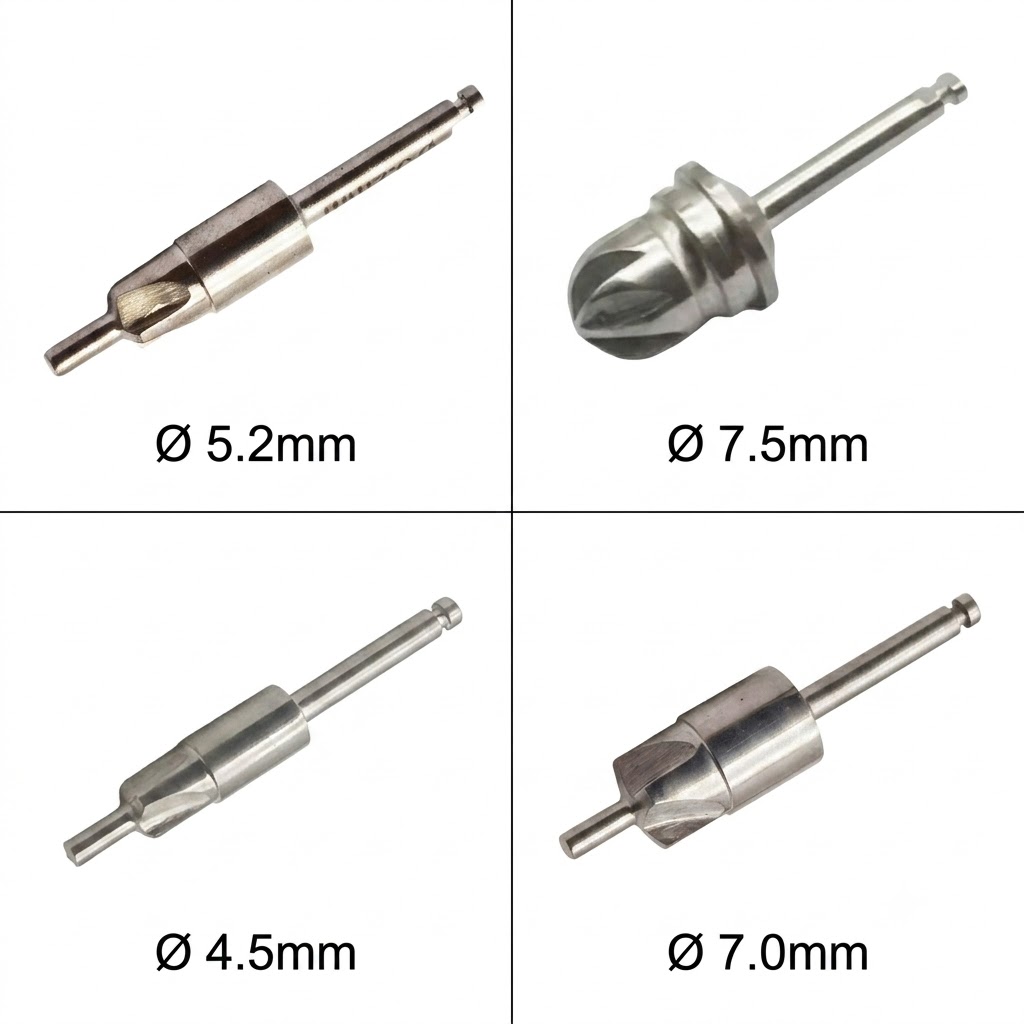

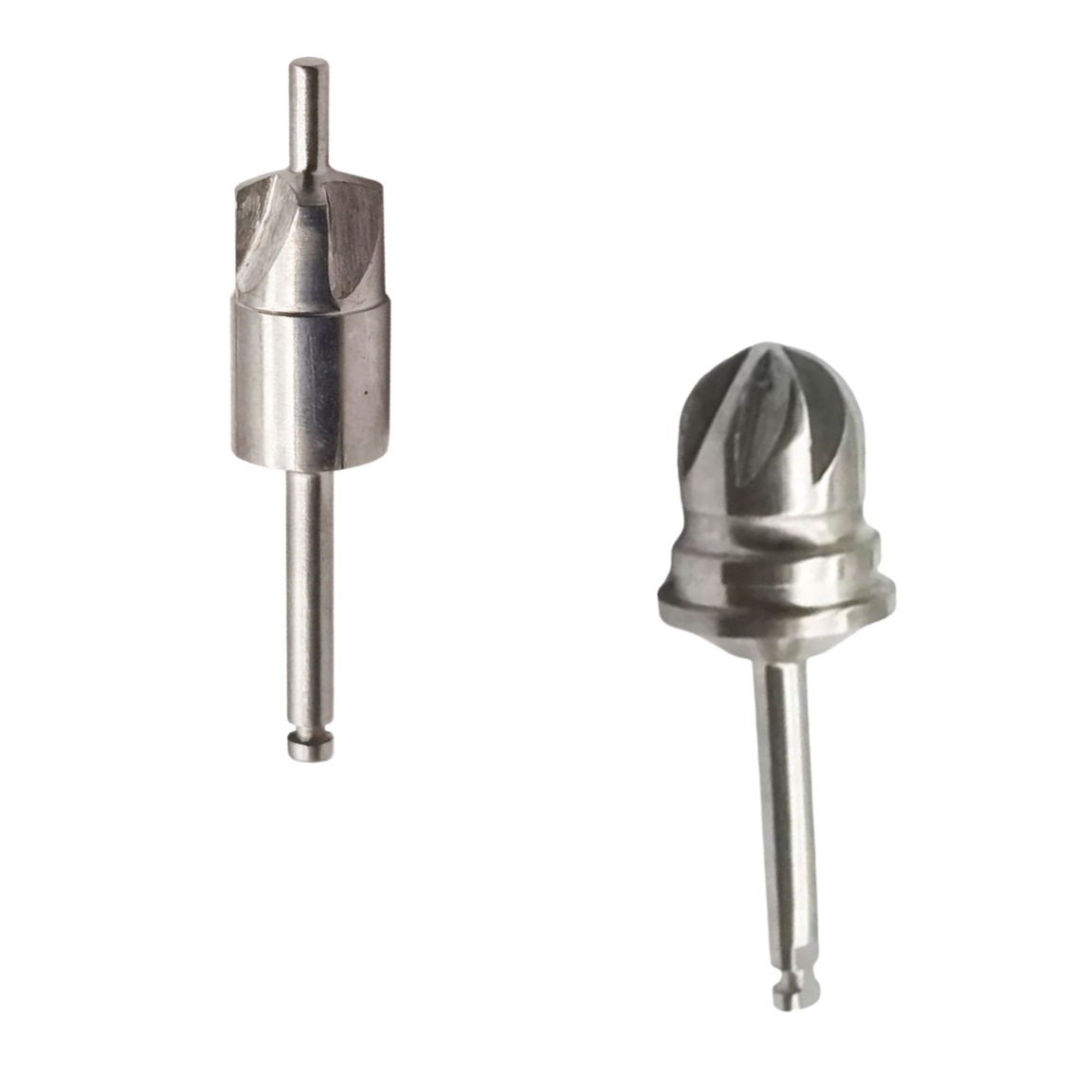

Available in four diameters—4.5Φ, 5.2Φ, 7.0Φ, and 7.5Φ—to precisely match narrow, regular, and wide implant platforms.

Designed for low-speed mechanical milling with copious irrigation to eliminate thermal osteonecrosis risk.

Standard RA shank compatibility with existing surgical contra-angle handpieces.
