Fixed-Depth Osteotomy Drills
The fixed-length stepped drill kit serves as a definitive fixed-depth osteotomy tool designed to streamline dental implant site preparation.
By functioning as sequential bone expansion reamers, these solid-body drills smoothly widen the bone while eliminating the risk of physical stopper detachment during rotation.
This system is clinically applied across a broad spectrum of implant placement procedures to ensure highly predictable depth execution without compromising surrounding anatomical structures.
Features
- Integrated Matrix Solution: Eliminates traditional, loose silicone stopper sleeves by integrating fixed depths directly into the solid-metal drill body.
- Y-Axis Depth Management: Organizes vertical cutting depths across 5 distinct, laser-etched rows ranging from L6 to L13.
- X-Axis Diameter Expansion: Controls horizontal bone widening via 5 color-coded columns starting from a 1.8mm pilot tip up to a 4.5mm final reamer.
Kit Components

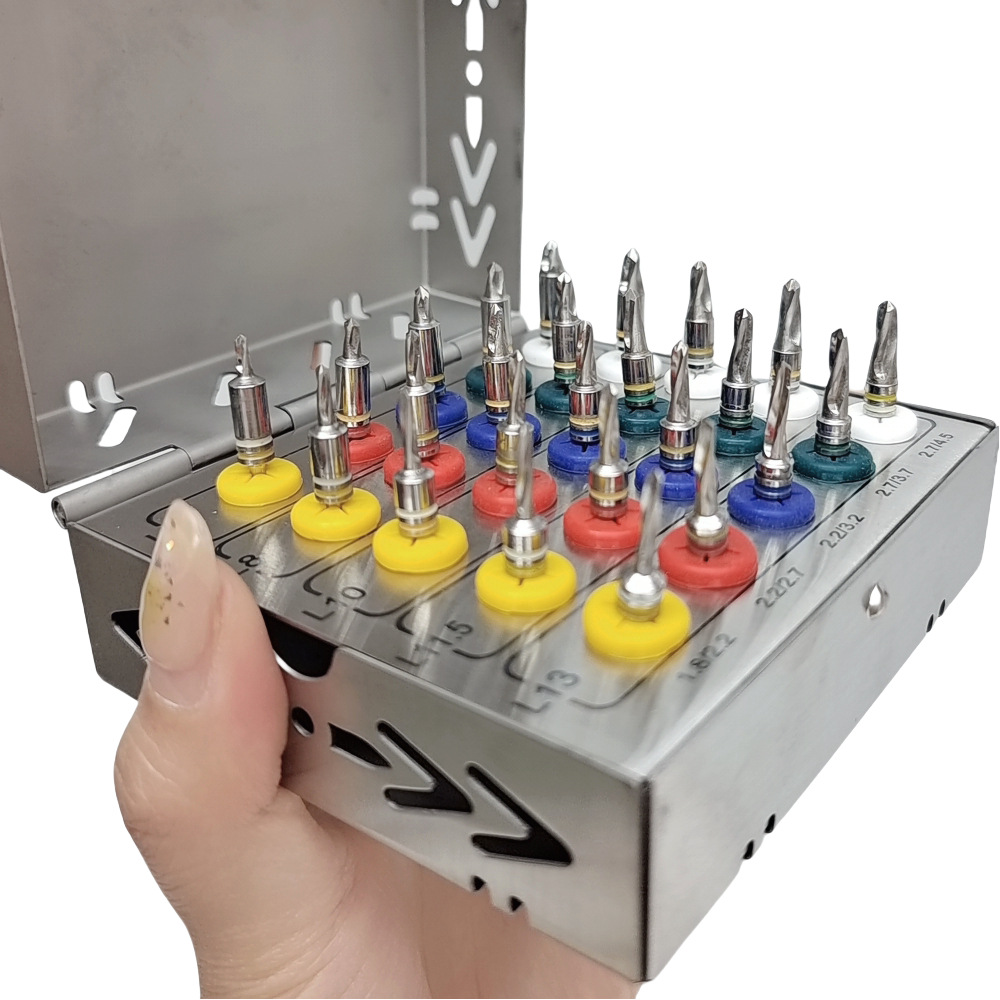

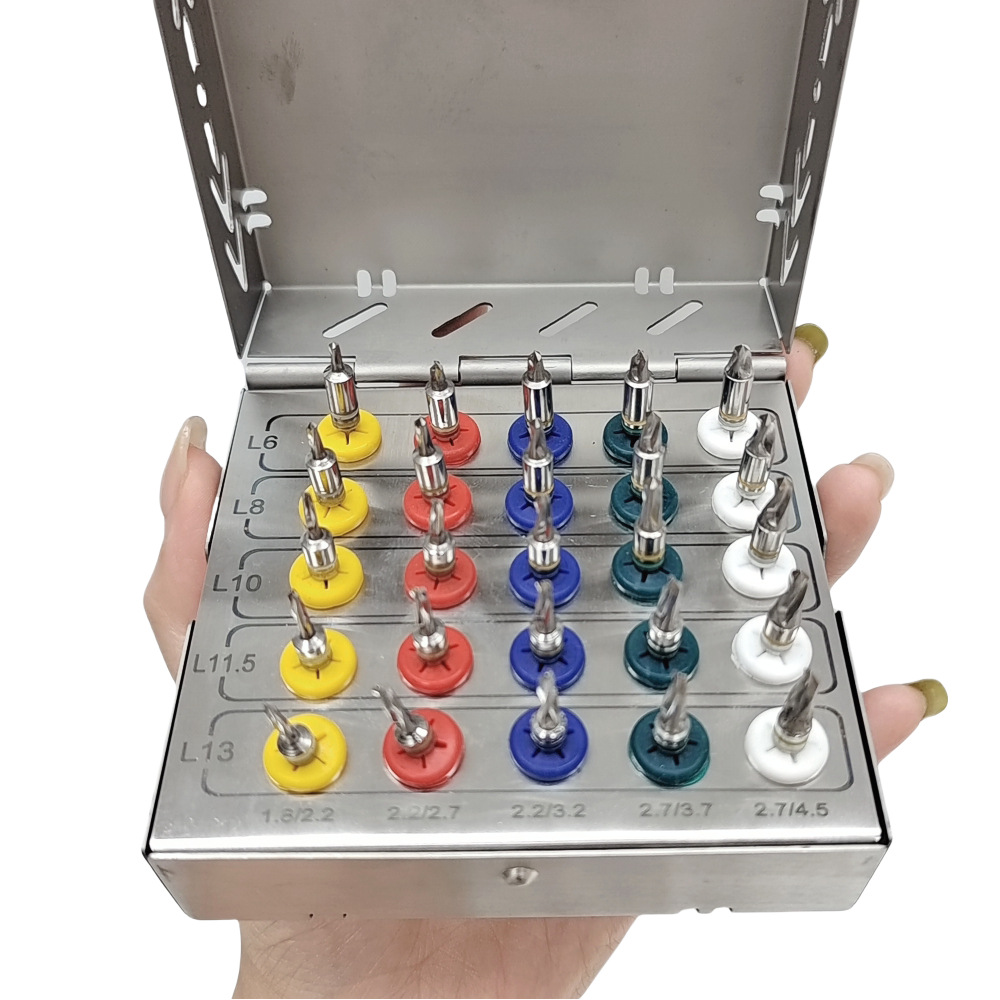

This 25-piece system is structured as a 5×5 grid for rapid sizing confirmation:
- Vertical Depths (5 Rows): 6.0mm (L6) | 8.0mm (L8) | 10.0mm (L10) | 11.5mm (L11.5) | 13.0mm (L13)
- Step Diameters (5 Color Columns):
- Yellow: Ø 1.8mm / 2.2mm
- Red: Ø 2.2mm / 2.7mm
- Blue: Ø 2.2mm / 3.2mm
- Green: Ø 2.7mm / 3.7mm
- White: Ø 2.7mm / 4.5mm
- Organizer Base: 1 pc Surgical Stainless Steel Hinged Cassette Block
