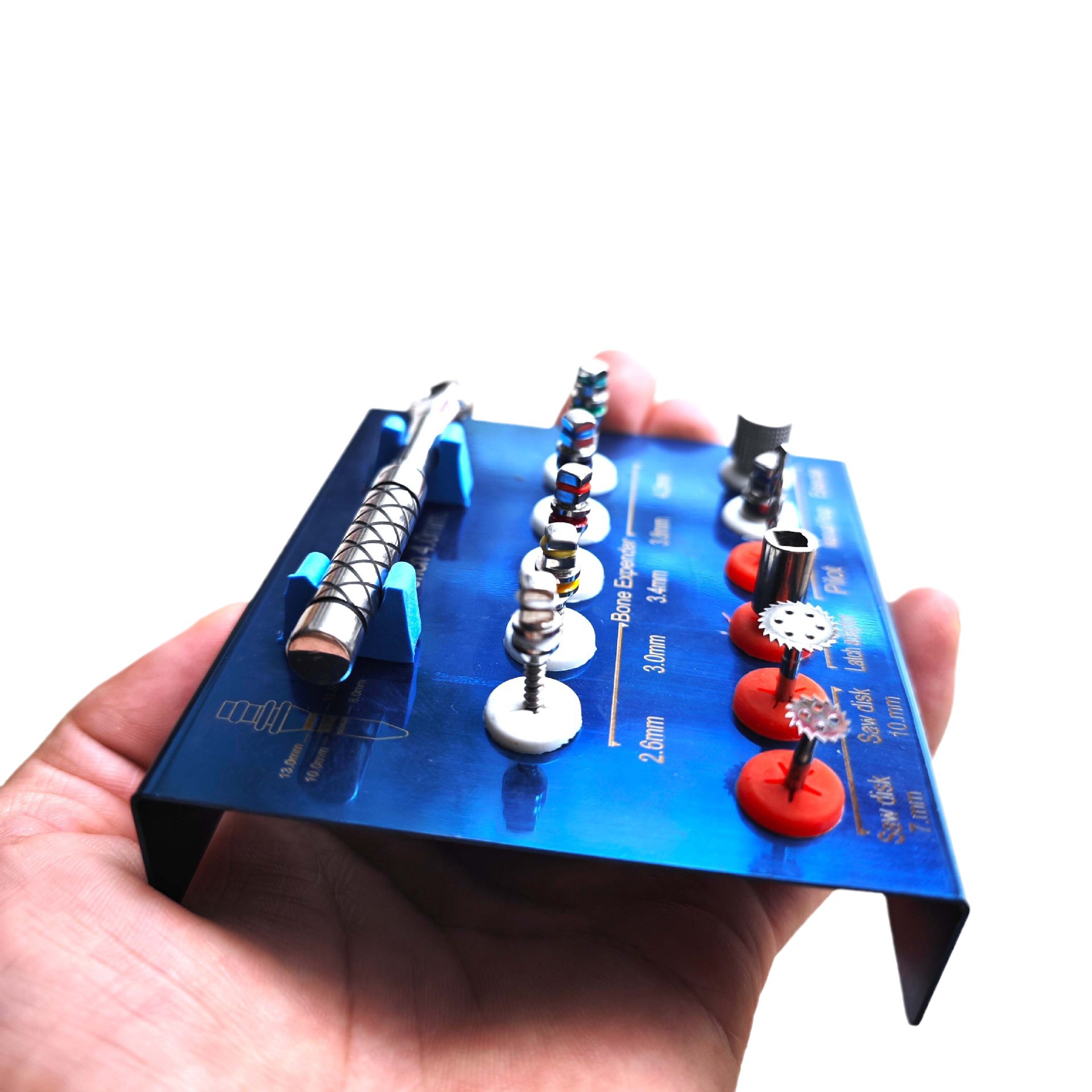

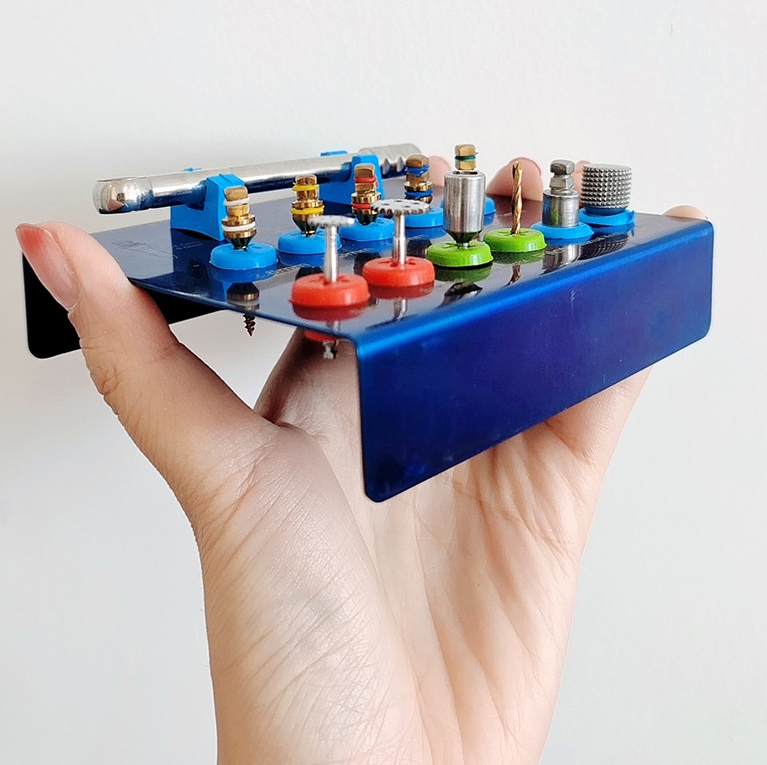

Alveolar Ridge Expansion and Bone Splitting Kit
This system is a specialized surgical tray designed for controlled alveolar ridge expansion and predictable bone splitting.
It offers a minimally invasive alternative to traditional block grafting or aggressive osteotomy drilling.
The workflow relies on gradual mechanical expansion, which safely preserves valuable native periosteum.
Dentists achieve high tactile control during site preparation, significantly reducing the risk of labial plate perforation.
Utilizing this kit eliminates mallet trauma from manual osteotomes, greatly improving the overall patient experience.
Clinical Parameters
5-Stage Gradual Expansion (Ø 2.6mm to 4.3mm): Progressively dilates narrow ridges and condenses bone to maximize primary stability.
Dual-Size Cortical Saw Disks (Ø 7.0mm & 10.0mm): Delivers precise, clean longitudinal indexing cuts with minimal bone loss.
Integrated 4.0mm Ratchet Wrench: Provides controlled, incremental manual torque for safe expander insertion.
Versatile Latch Adaptor: Enables seamless transition from manual use to low-speed contra-angle handpieces.
Compact, High-Contrast Anodized Block.

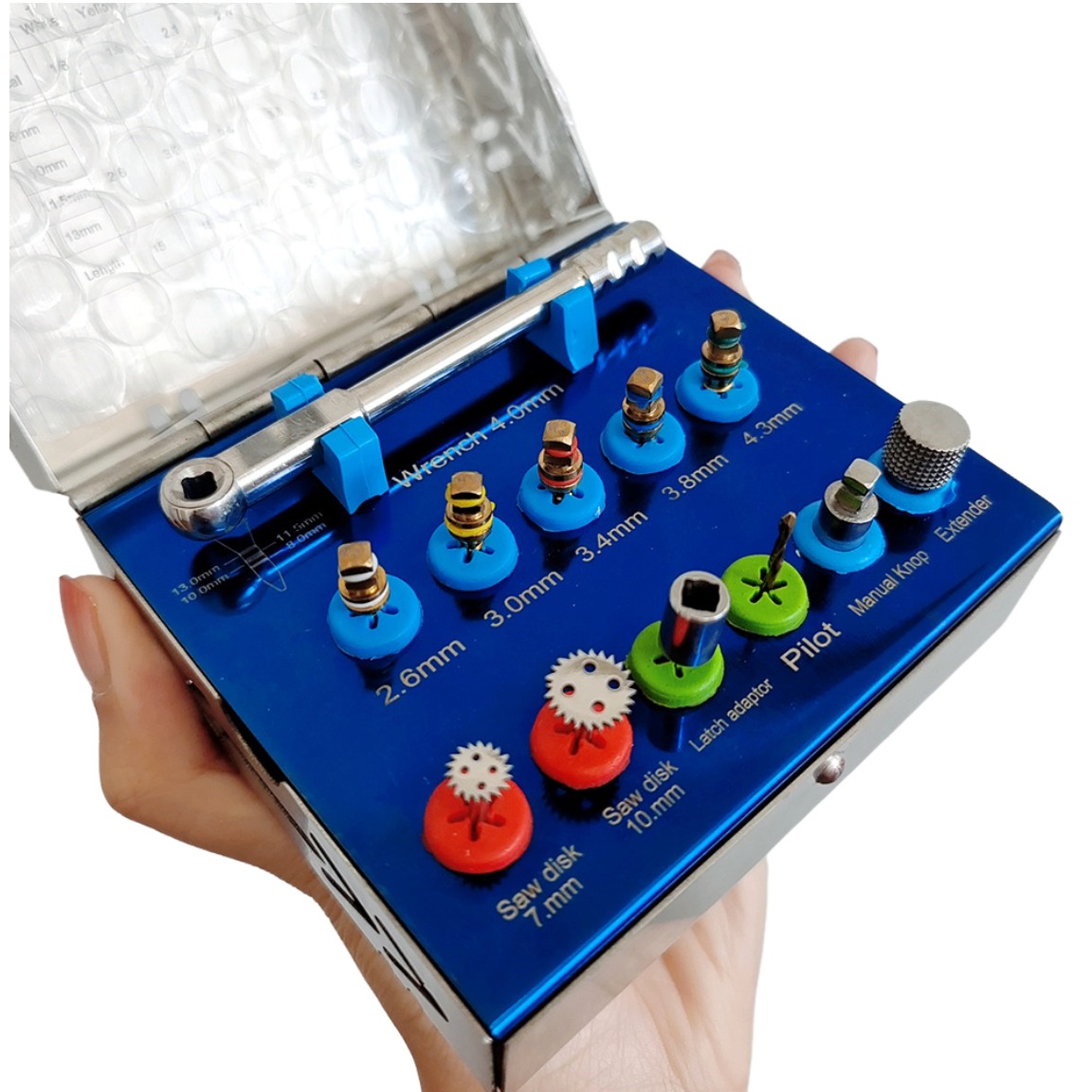

Complete instrument block components:
| Component Name | Key Parameters / Dimensions |
|---|---|
| Ratchet Wrench | Square Drive |
| Pilot Drill | Standard Surgical Gauge |
| Saw Disk (Small) | |
| Saw Disk (Large) | |
| Expander Screw 1 | (Yellow Ring) |
| Expander Screw 2 | (Red Ring) |
| Expander Screw 3 | (Blue Ring) |
| Expander Screw 4 | (White Ring) |
| Expander Screw 5 | (Green Ring) |
| Latch Adaptor | Standard Contra-Angle Fit |
| Manual Knob | Knurled Surface |
| Extender | Extended Shaft |
