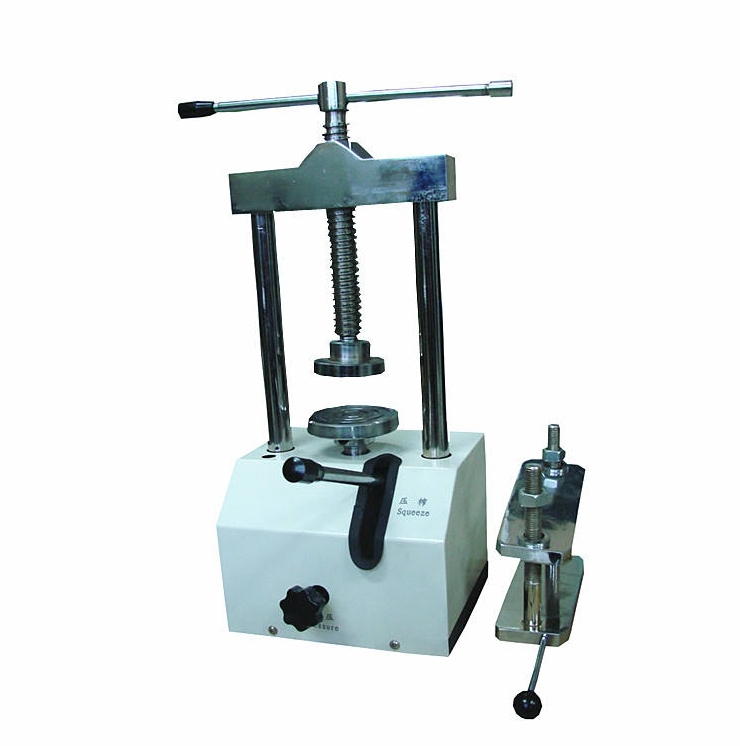

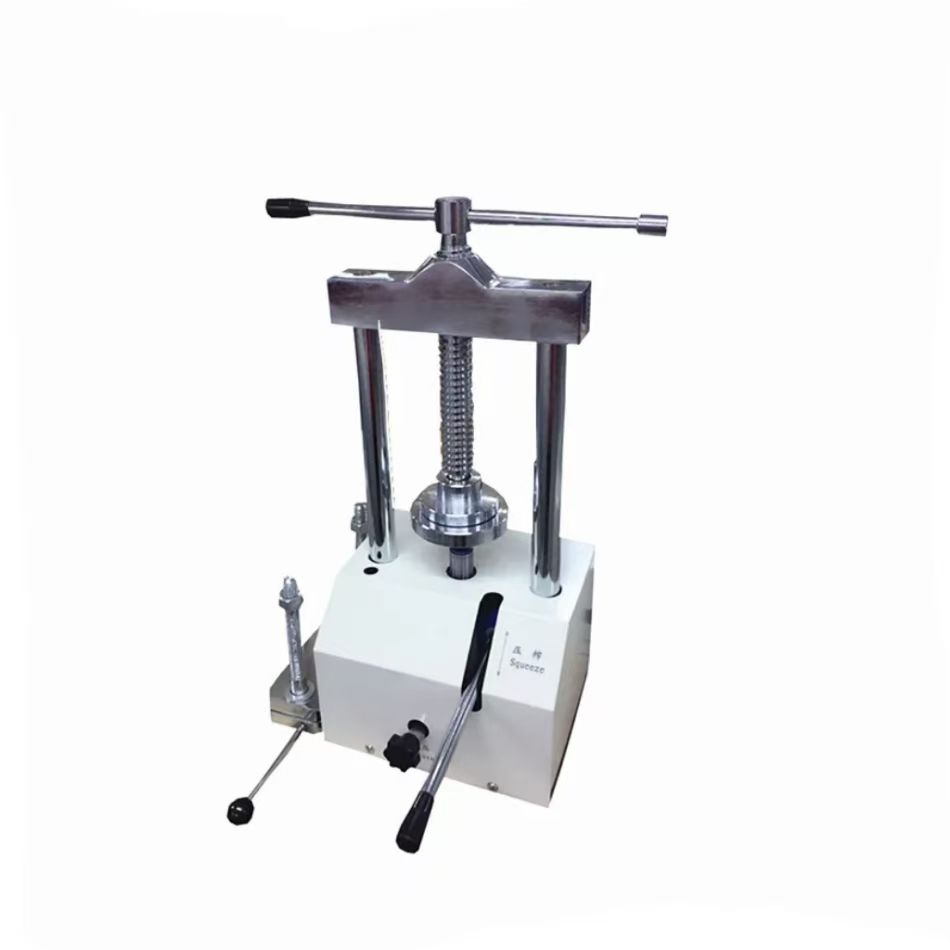

This hydraulic press is a essential tool for high-density acrylic packing in the dental laboratory. By utilizing a dual-stage system, it ensures precise flask seating and eliminates porosity in denture bases.
Operation Guide
- Load Flasks: Place up to three flasks on the lower platen simultaneously.
- Initial Squeeze: Use the lower handle (Squeeze) to quickly raise the platen for initial contact.
- Apply Pressure: Tighten the front knob (Pressure) to reach the required hydraulic force.
- Secure & Release: Lock your flask bolts, then turn the knob to release pressure and remove the work.
- Simple Maintenance: The compact, heavy-duty frame requires minimal oiling for long-term reliability.
Application: This device is primarily used for the compression of acrylic resin into denture flasks during the prosthetic packing stage.
Technical Specifications
| Parameter | Specification |
| Working Pressure | 2 Tons (2T) |
| Lifting Height | 80 mm |
| Flask Capacity | Up to 3 Flasks simultaneously |
| Gross Weight | 23 kg |
| Dimensions | 24.5 x 19 x 55 cm |
| Packaging | 1 set per carton case |
