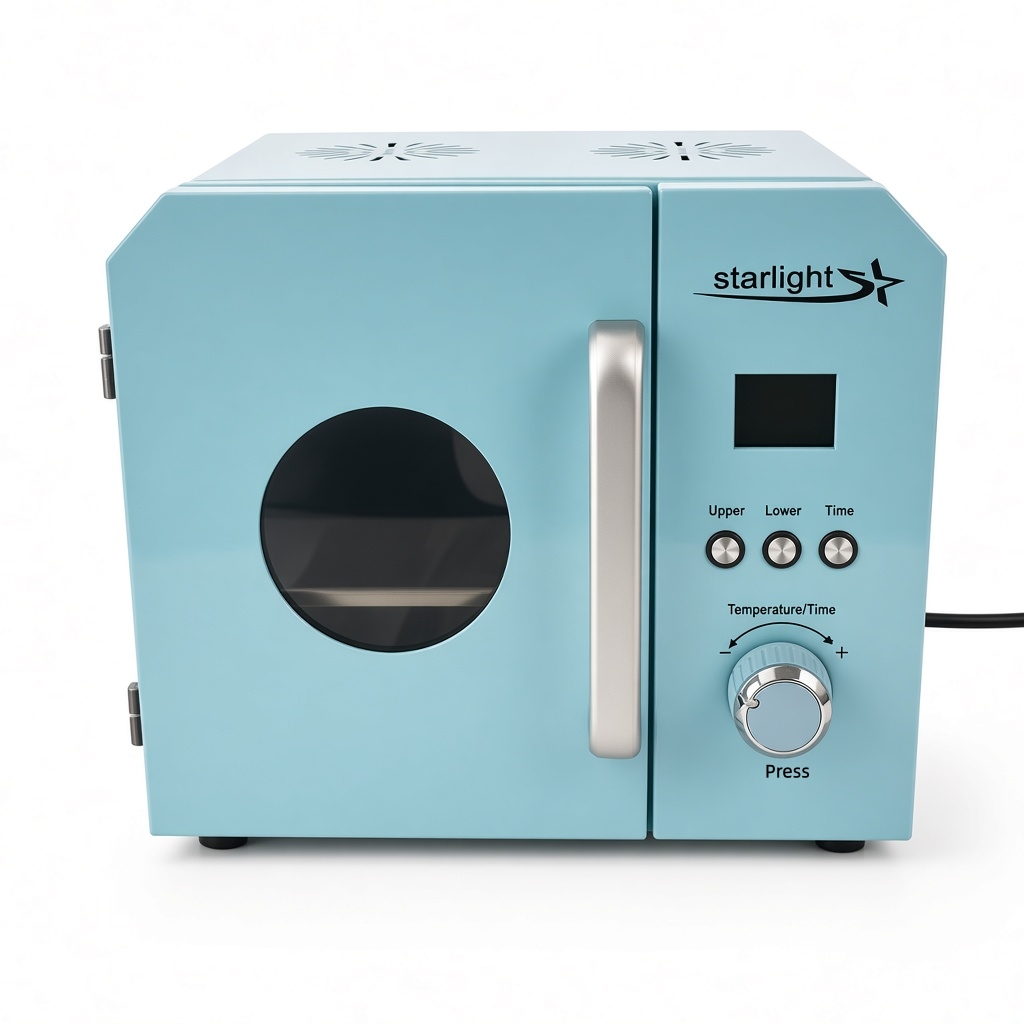

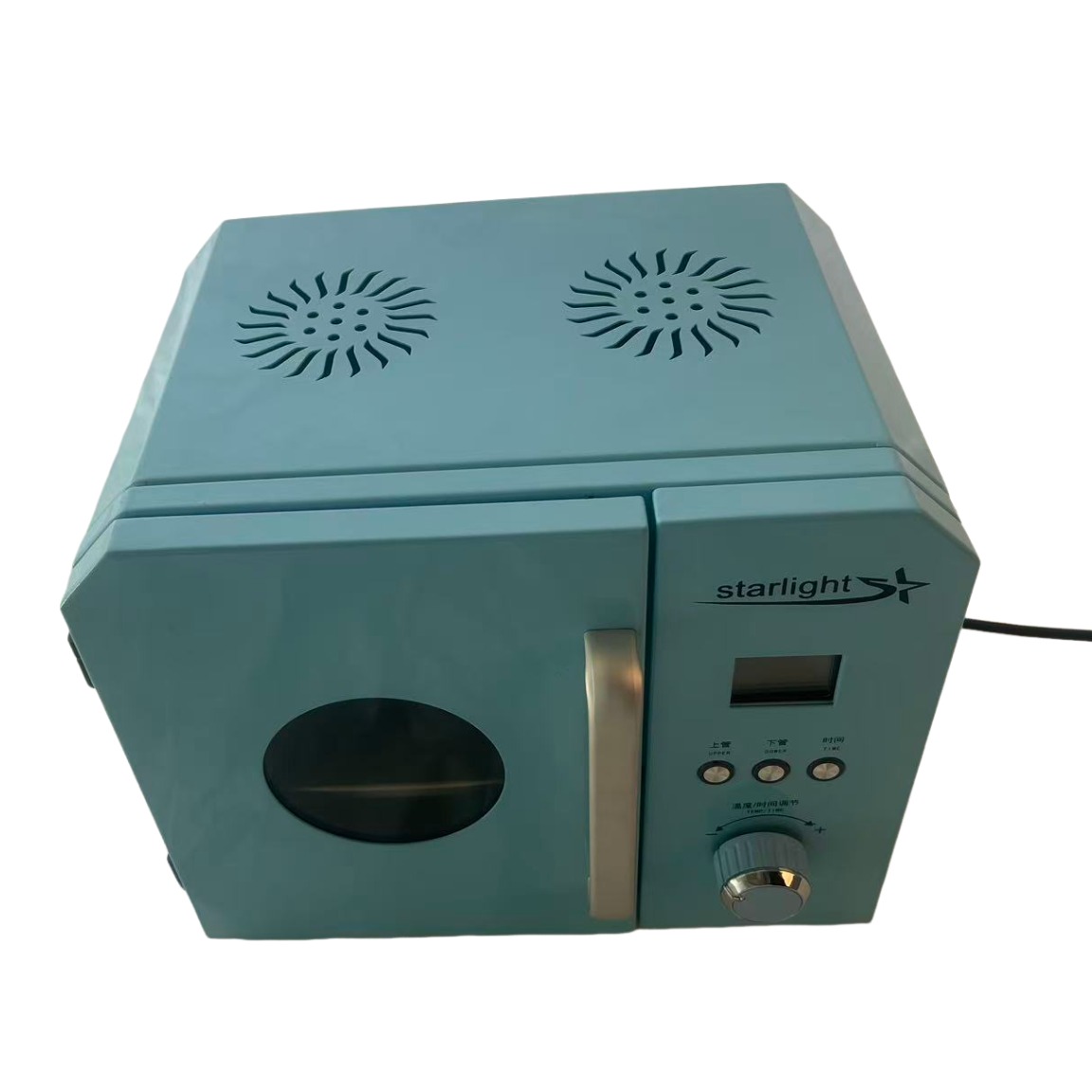

Dental Drying Oven

Pre-heating Glaze Paste Oven

Designed specifically for ceramic pre-heating, this rapid drying oven gently evaporates liquid mediums from wet stain and glaze pastes applied to zirconia or porcelain crowns.

Pre-drying the restoration before final high-temperature firing prevents moisture boiling, surface bubbling, and ceramic micro-cracking.

It provides uniform heat distribution to secure flawless aesthetic shading and optimal surface gloss across both traditional and CAD/CAM ceramic workflows.

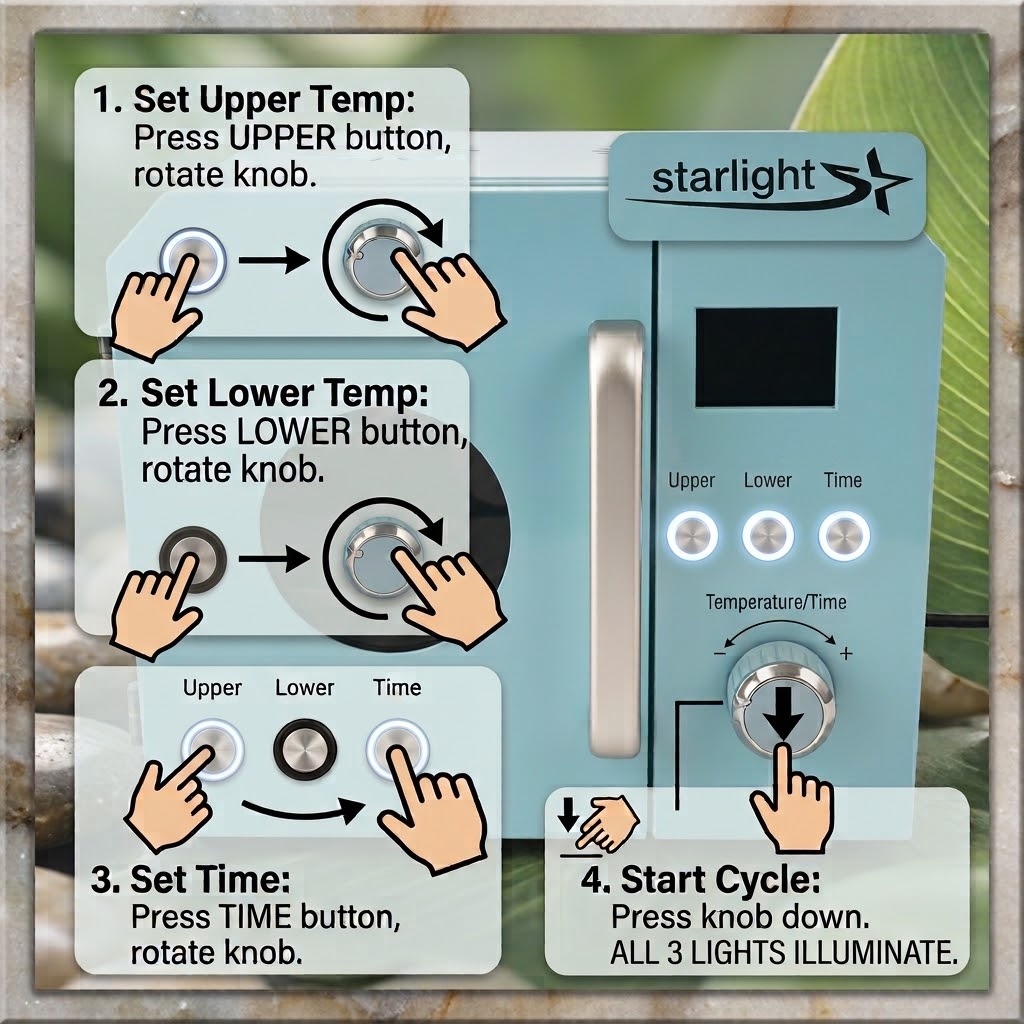

Operation Guide

With its intuitive control system and a clear LCD panel displaying all adjustment data, this drying oven allows users to independently set upper and lower heating temperatures, adjust the working time, and activate the entire cycle with a single knob press.

1. Set Upper Temperature: Press the UPPER button (left button), then rotate the central knob to dial in your targeted top-chamber temperature.
2. Set Lower Temperature: Press the LOWER button (middle button), then rotate the central knob to select your targeted bottom-chamber temperature.
3. Set Drying Time: Press the TIME button (right button), then rotate the central knob to set the required drying duration.
4. Start the Cycle: Press down directly on the central knob. The indicator lights for the upper, lower, and time buttons will all illuminate together, confirming the unit is in active drying mode.

Technical Specifications

• Application: Pre-drying treatment for ceramic stains, glaze pastes, and liquid opaquers

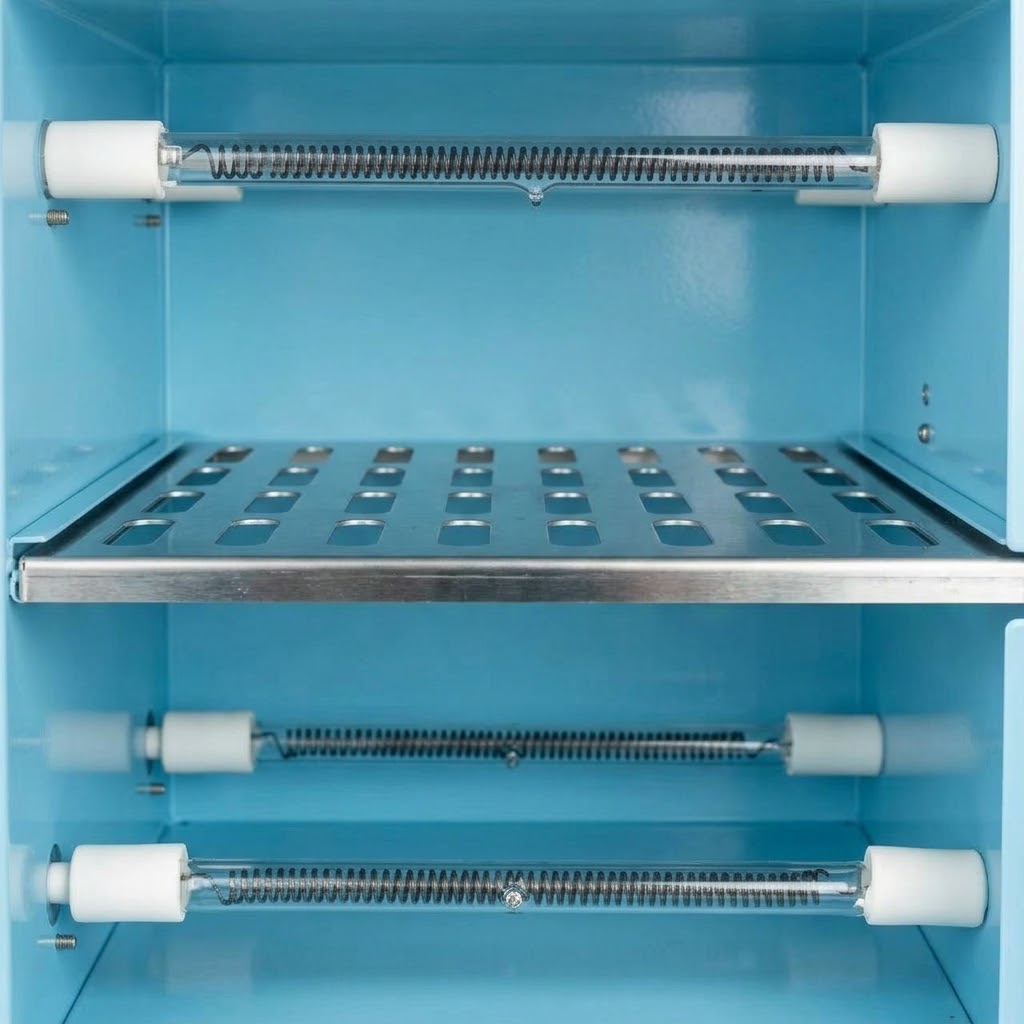

• Heating Technology: Far-infrared carbon fiber heating tubes
• Temperature Control: Microprocessor dual-zone (independent upper & lower heating control)
• Max Temperature: 230°C
• Display Interface: Digital LCD screen
• Power Rating: 1200 W
• Operating Voltage: 110V–220V (50/60 Hz wide-voltage input)
• Drying Tray Size: 21.5 cm × 17.5 cm
• Outer Dimensions: 320 mm × 240 mm × 270 mm
• Unit Weight: 6.2 kg (Net) / 7.0 kg (Gross)
