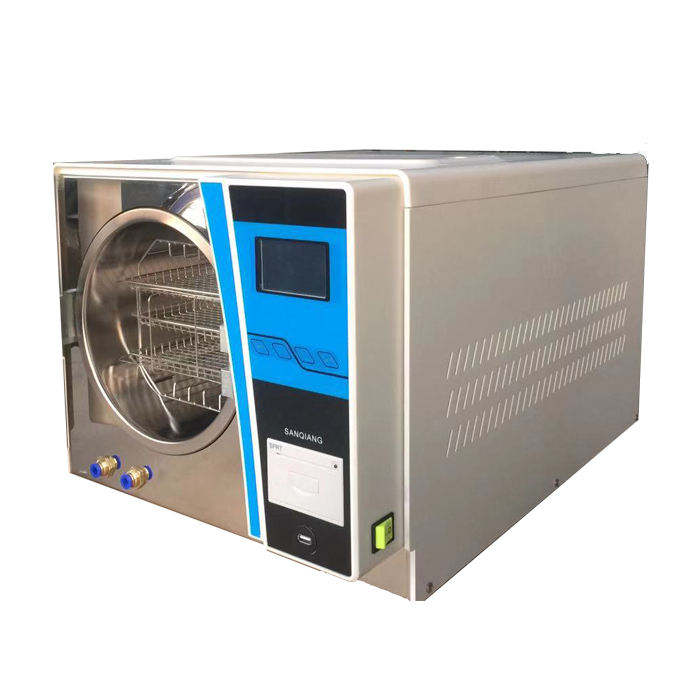

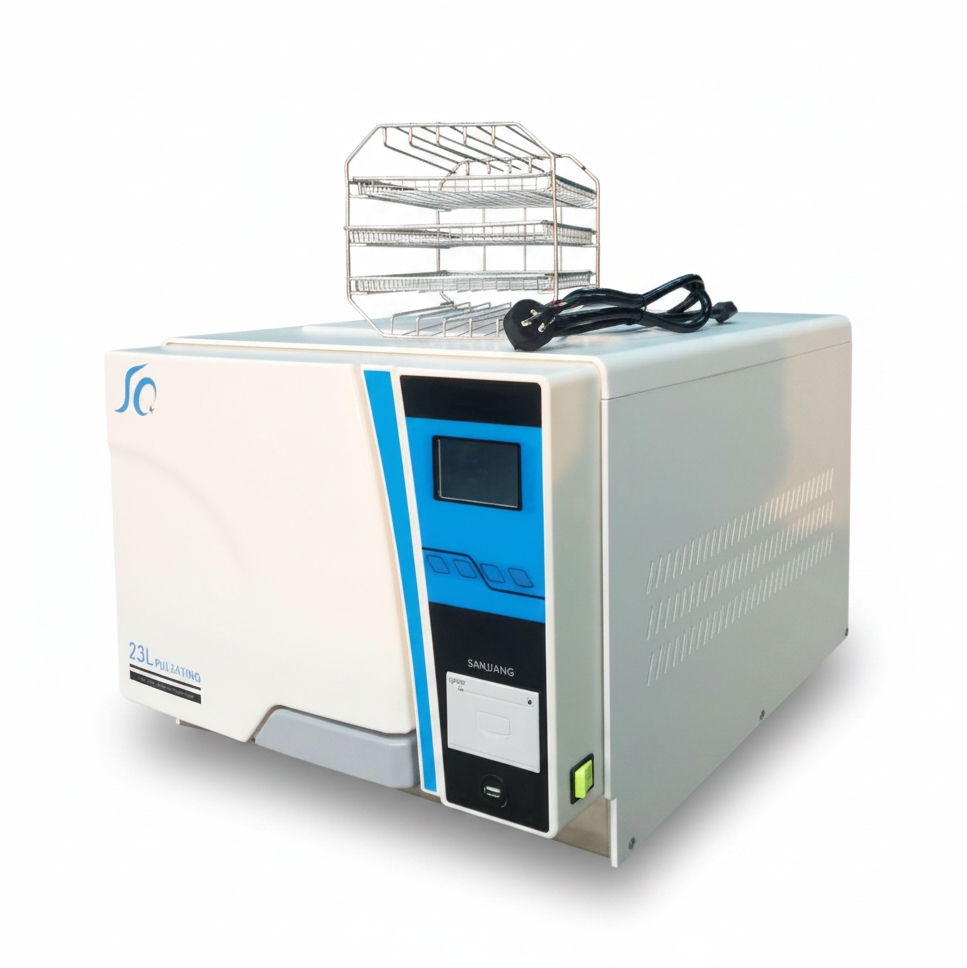

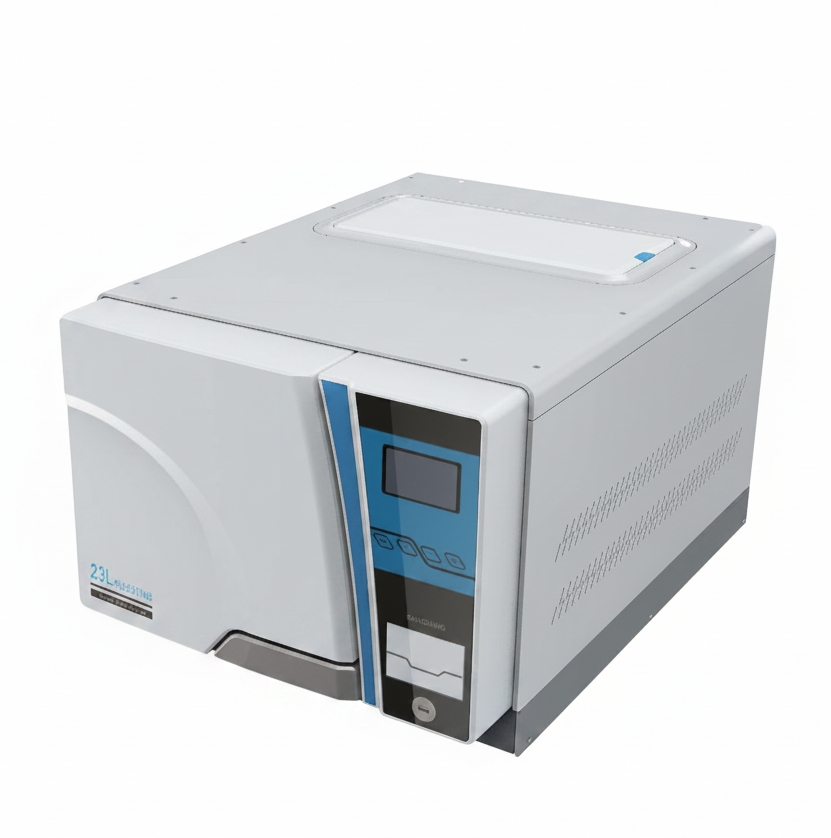

Class B sterilizer Bench-top
This 23L Class B Dental Steam Sterilizer is a premium tabletop autoclave designed to meet the rigorous infection control standards of modern clinical dentistry.
Advanced pulsating vacuum technology achieves a deep -80 kPa pull, removing trapped air to guarantee thorough steam penetration and sterilization of complex dental handpieces.
It delivers hospital-grade sterilization for complex, wrapped, and hollow instruments, optimizing daily clinical workflows.
Features
Pulsating High-Vacuum Technology: Delivers deep vacuum pulses to eliminate air pockets, ensuring absolute steam penetration through complex hollow instruments and multi-layered wrapped packs.
Dual-Temperature Efficiency: Offers flexible 121℃ standard cycles and rapid 134℃ high-speed cycles to match the specific material tolerances of your dental inventory.
Automatic Vacuum Drying: Advanced post-vacuum drying system reduces residual humidity (<0.2%for instruments), ensuring tools emerge bone-dry and instantly ready for storage or use.

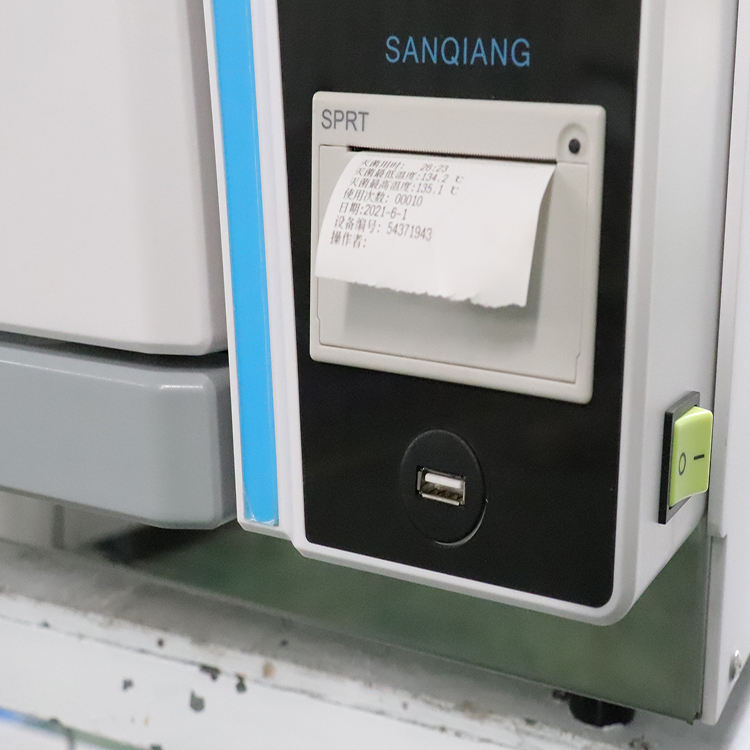

Complete Data Traceability: Equipped with a built-in micro-printer to instantly log cycle data, streamlining your practice’s regulatory compliance and medical record-keeping.
Technical Specifications
| Parameter | Specification |
| Classification | Class B High Vacuum |
| Chamber Volume | 23 Liters (Φ24.6x47mm liner space) |
| Chamber Material | Anti-corrosion 304 Stainless Steel |
| Power Supply | AC 220V, 50Hz / AC 110V, 60Hz |
| Power Consumption | 1.7 kVA (≈1.5kWh/cycle) |
| Working Pressure Range | -80kPa to 210 kPa |
| Sterilization Temperatures | 121℃/134℃ |
| Safety Features | Dual pressure relief valves, automatic door lock, real-time error alarms |
| Dimensions (L × W × H) | 715x513x425mm |
| Net Weight | 49kg |
| Product Certification | ISO, CE Compliant |
Tutorial Video:
