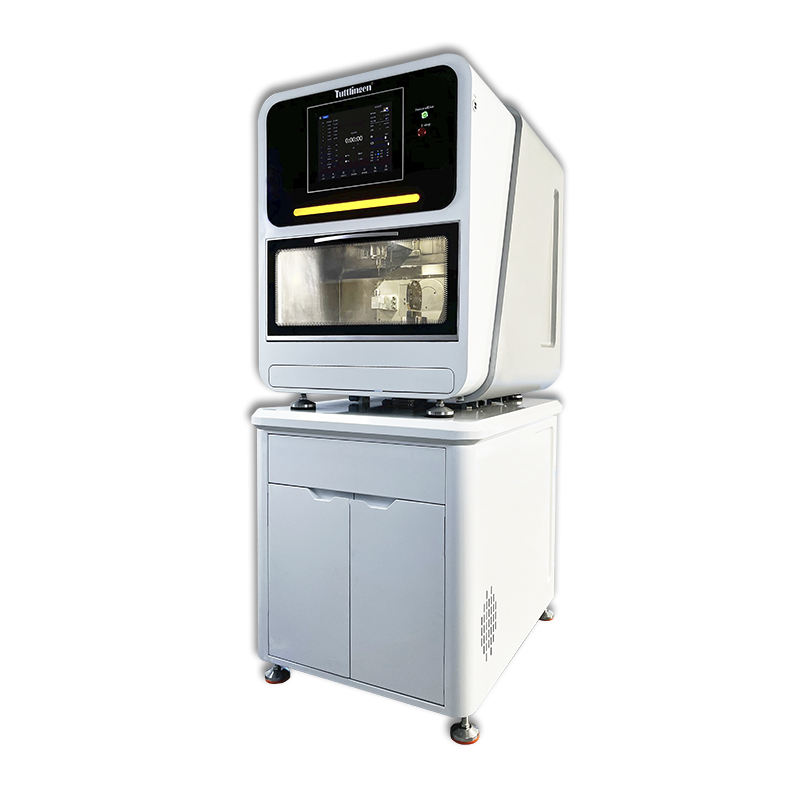

Wet and Dry Integration Milling Machine with Universal Two-Clamp System
This 5-axis dental milling machine provides the industrial power needed for both high-precision zirconia and complex metal milling.
With 0.01 mm accuracy, you achieve the perfect passive fit required for sophisticated titanium Malone bridge frameworks.
The expanded B-axis(+30° to -210°) range allows for effortless access to deep undercuts and angled screw channels in full-arch restorations.
Its water-cooled spindle ensures titanium is milled efficiently without overheating, preserving the metal’s structural integrity.
Seamlessly switching between wet and dry modes makes it a versatile, all-in-one solution for any modern dental lab.
This machine simplifies the fabrication of premium prostheses while ensuring superior clinical outcomes for every patient.
Technical Data
1. Machine Performance & Core Specs
| Feature | Specification |

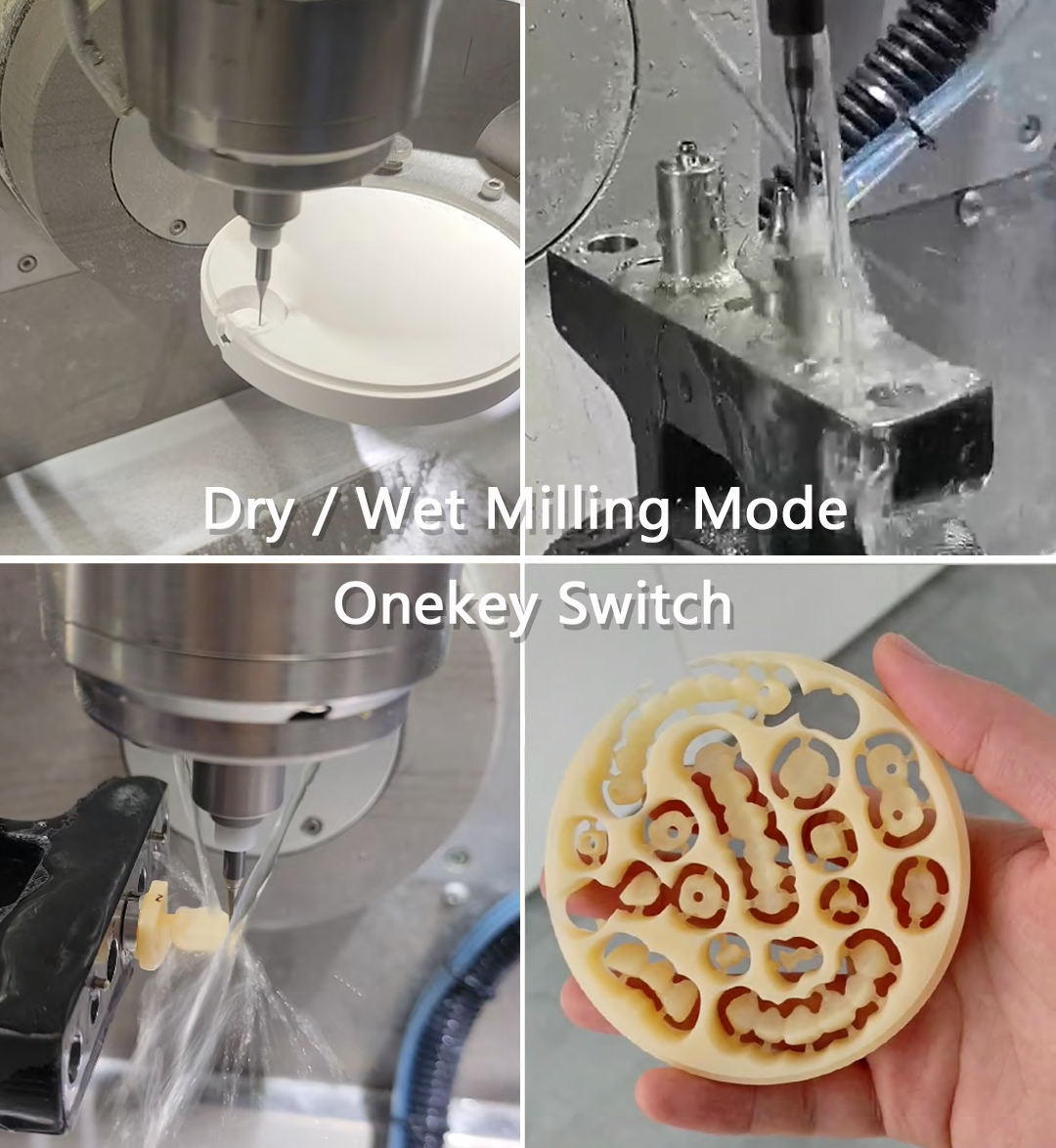

| Milling Mode | Hybrid Dry / Wet (One-Key Switch) |
| Spindle Type | Industrial Water-cooled Spindle |
| Spindle Power | 1.5 kW |
| Max Spindle Speed | 60,000 rpm |
| Processing Accuracy | 0.01 mm |
| Repetitive Accuracy | 0.005 mm |
| Machine Weight | Approx. 400 kg (Cast Iron & Sheet Metal) |

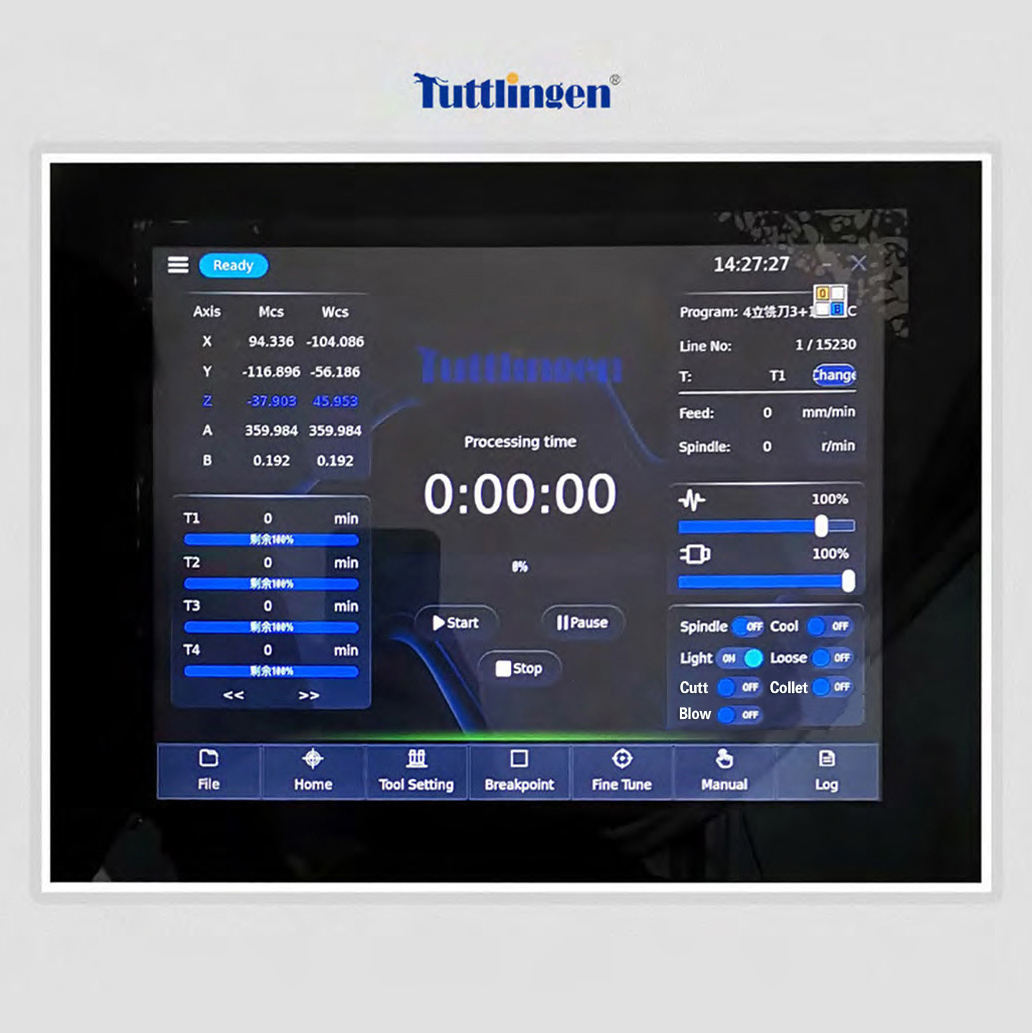

| Interface | 12-inch Touch Screen |
2. Kinematics & Tooling
| Parameter | Detail |
| A-axis Rotation | 0° to 360° |
| B-axis Rotation | +30° to -210° |
| X/Y/Z Milling Range | 230 × 140 × 105 mm |
| Processing Speed | 0 – 10,000 mm/min |
| Tool Capacity | 12-Position Automatic Changer |
| Tool Shank Diameter | 6 mm |
| Control System | Intelligent Industrial System (Hyperdent CAM) |
3. Material Compatibility & Clamping System
Two clamping system: one is used for standard 98mm discs, and one is used for glass ceramic blank and titanium premilled abutment.
| Clamp Type | Ideal Material Applications | Format |
| Standard Clamp | Zirconia, Wax, PEEK, PMMA | φ98 mm Discs |
| Block Holder (3-Slot) | Lithium Disilicate (e.g., E-max) | Multi-unit Blocks |
| Premilled Holder (4-Slot) | Titanium Premilled Abutments | 4-Position Blanks |
One-Touch Precision Calibration
Maintain micron-level accuracy without the hassle. The included calibration kit works with a single-key command on the control panel, automating the entire process for consistent, high-quality milling results.
