Clinical Micromotor

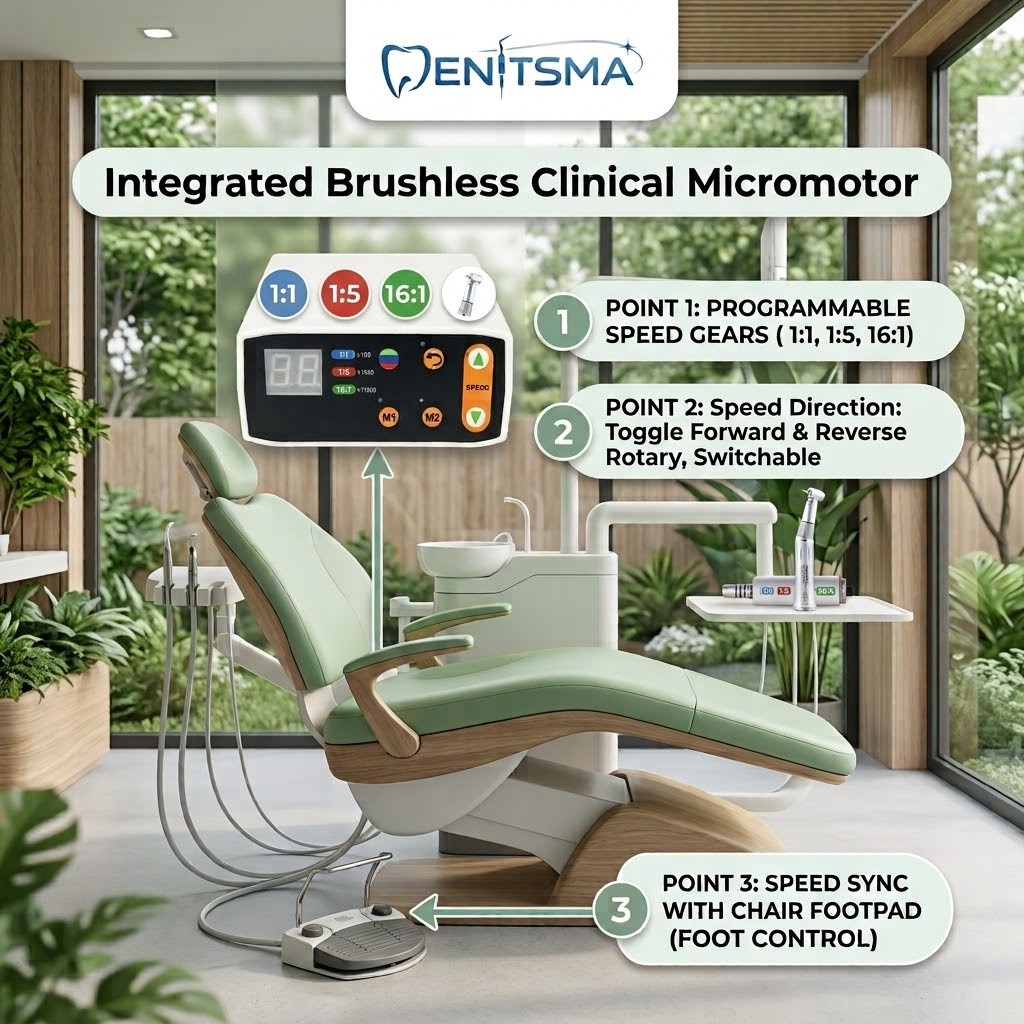

This brushless clinical micromotor integrates seamlessly with the dental chair to drive electric handpieces with precise, steady speed output and high torque. Footpad control allows continuous, chair-side speed adjustment without interrupting the procedure.

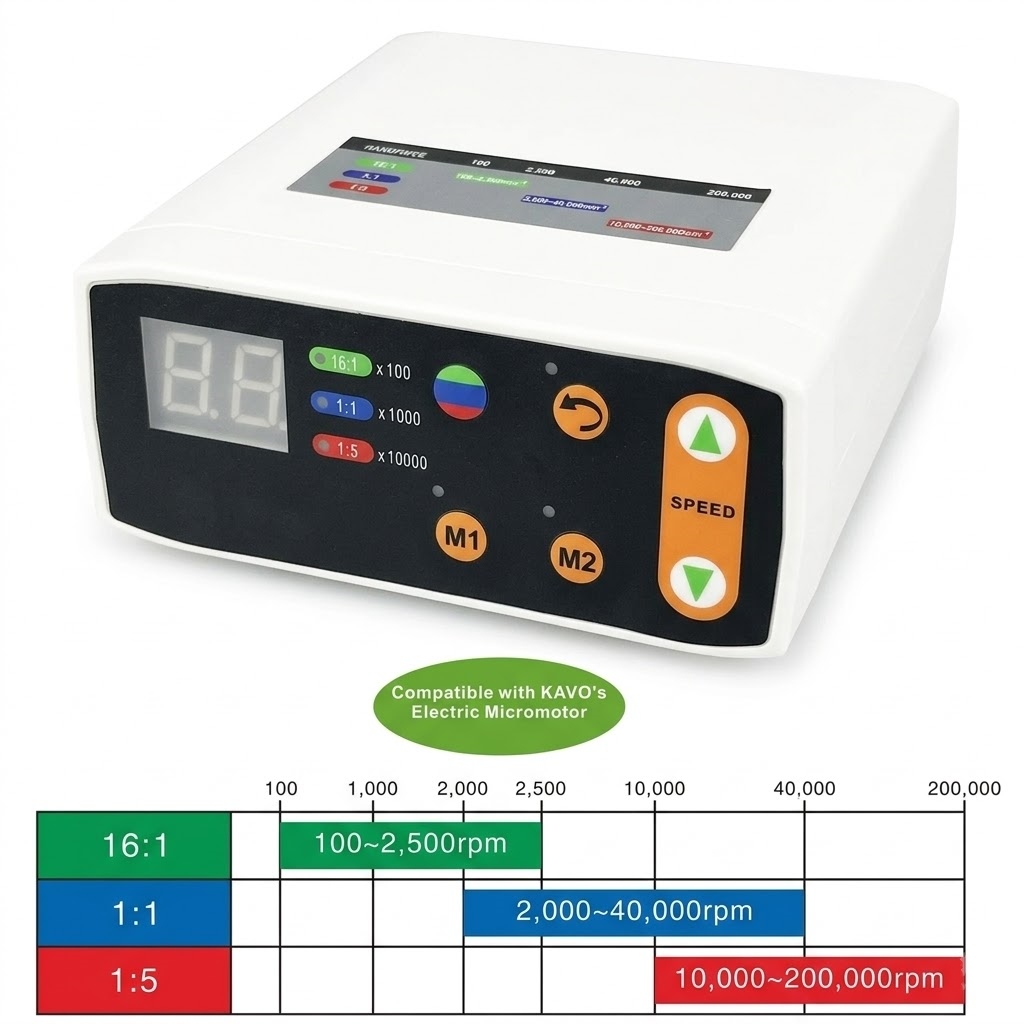

The intelligent control module allows instant program switching between 1:1, 1:5, and 16:1 gear ratios to rapidly adapt to specific clinical needs. When paired with a 1:5 handpiece, the system confidently achieves rotational speeds up to 200,000 RPM while maintaining high torque in stability.

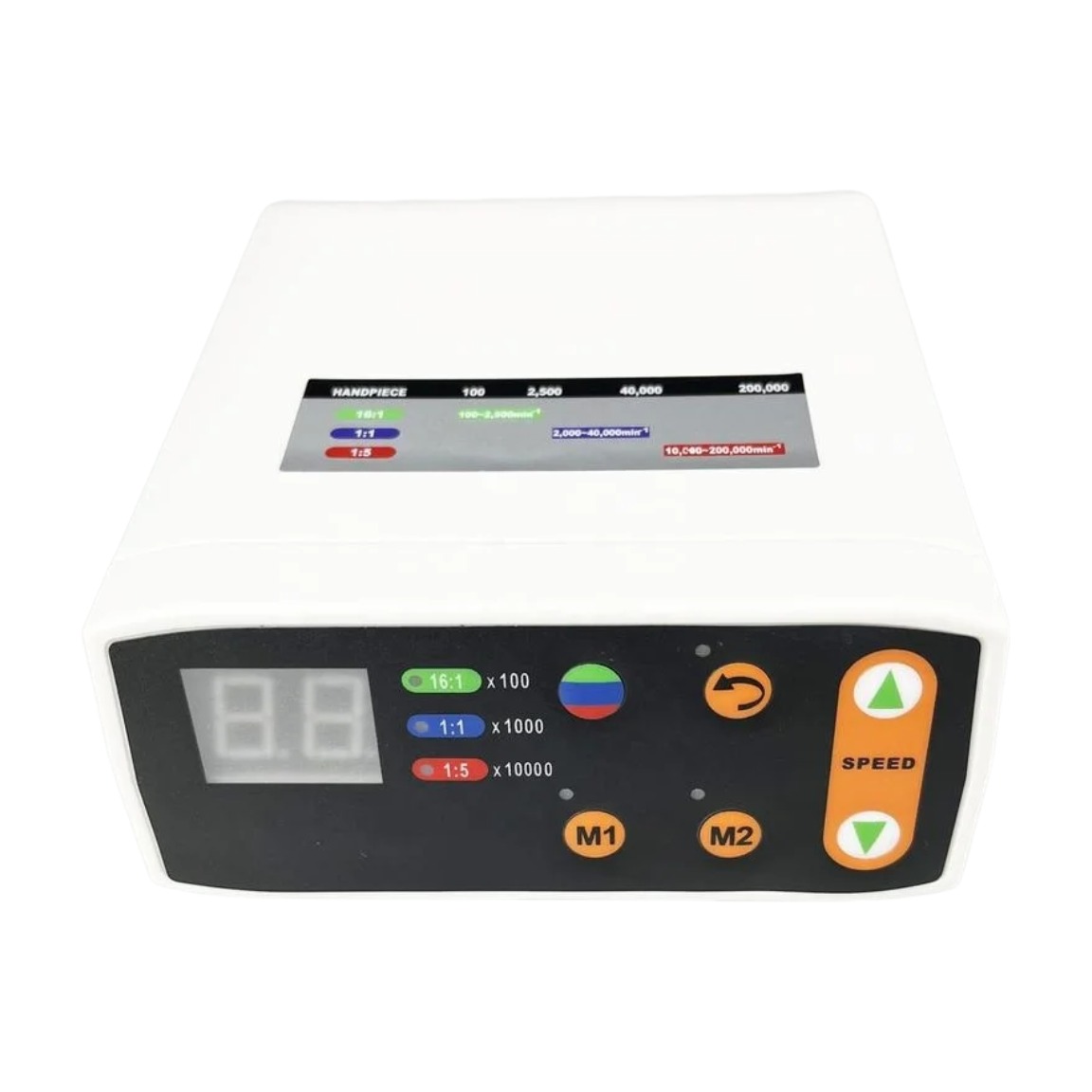

Operation and set is simple: Set your preferred gear ratio, target speed, and rotation direction on the motor control panel. Once set, press the dental chair footpad to smoothly activate and control the electric handpiece speed in real time.
Parameters
| Specification | Value |
|---|---|
| Type | Brushless clinical micromotor (E-type) |
| Speed range (motor) | 2,000–40,000 rpm |
| Max speed (1:5 handpiece) | Up to 200,000 rpm |
| Programmable ratios | 16:1 / 1:1 / 1:5 |
| Torque | 3.4 N·cm |
| Noise | ≤ 60 dB |
| Input power | AC 100–240 V, 50/60 Hz |
| Weight | 70 g |
| Cooling / Illumination | Internal water spray + Integrated LED |
| Control | Chair footpad + Forward/Reverse switch |
| Connection | Standard E-type ISO |
